| | Posted : 25 Dec 2013 - 19:42 Post title : Accessory Power Outlet ....FYI | | | Hi all,

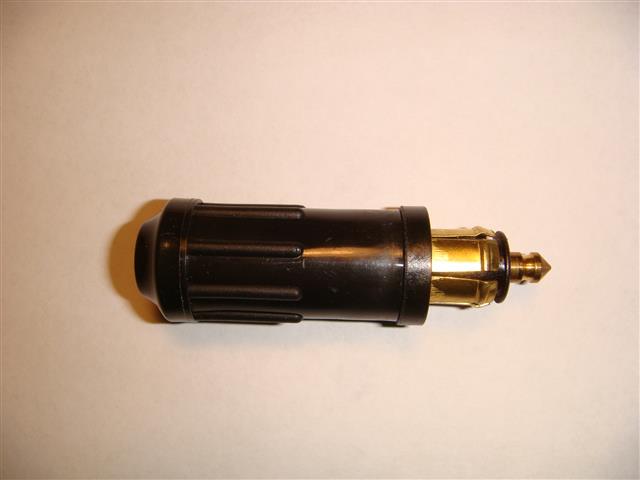

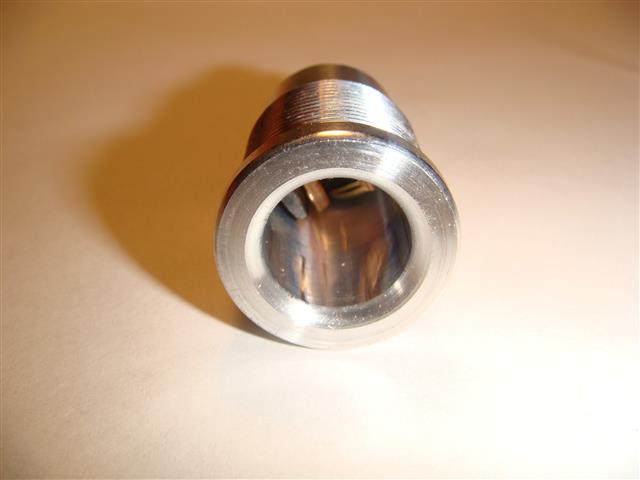

Just an FYI on the Accessory Power Outlet. I purchased the kit thinking it would be nice to have a standard 12V outlet on the bike for plugging in things like a GSP or charging Blue Tooth headsets. I didn't know the Triumph Accessory Power Outlet isn't the standard size used in automobiles. It is smaller and shorter than that use in cars. As it turns out, it's the same size as the power outlets used on BMW R1200RT motorcycles. I happen to still have the power plugs I bought for my previous bike, the BMW R1200RT, and these plugs work just fine in the Triumph power outlet. Maybe this is a motorcycle power outlet standard, don't know? Anyway, here are a couple of pictures of the outlet and plug;
Just thought this might be of interest to others contemplating purchasing the accessory power outlet.
Henry
| Current fleet:
2012 Thunderbird 1600 ABS
1979 KZ 650SR
|
|
| | | GerPa | | Jupiter | |  | | Reg. Date | : | 10/12/2011 | | Posts | : | 1,919 | | Location | : | Mackay, Central Queensland, Australia |
|
| | Posted : 25 Dec 2013 - 20:43 Post title : Re: Accessory Power Outlet ....FYI (Re: AZ_Tbird) | | | AZ
 I think the reason for this outlet is that it's amperage rating is far in excess of the normal "Ol Cigarette Lighter Outlet" and the reason behind it is the ability to run Heated Gloves & Riding Gear. ( Maybe up to 30/35amps)
|  May-2011-1600, 20306 Tune, Mustang Vintage Solo Seat, Meerkat Cat Bypass, + Meerkat Modified Short TORS   ,K&N Air Cleaner,K&N Oil Filter, JBQ lifting system, Gold Plug Magnetic Sump Plug,Dart Fly screen, Rivco Risers, GiPro Gear Indicator, Breakaway Cruise Control, Avon ISO Grips, Scorpion Western Low Handlebars, Kury Switchblade Pegs, Garmin Zumo390LM,Michelin RC2 on Front RC 3 on ,Modified Rear Drive Pulley Hub Bearings (Mat1600/Alex4 Modification) Front Susp: Std & 7.5W Oil /126mm Air Gap & Rear:Hagon Nitro's with 26Kg/cm Springs + Lots of other "Bling" stuff.
|
|
| | | gwight | | Chaac | |  | | Reg. Date | : | 26/04/2011 | | Posts | : | 761 | | Location | : | Broken Hill, N.S.W., Australia |
|
| | Posted : 26 Dec 2013 - 02:37 Post title : Re: Accessory Power Outlet ....FYI (Re: AZ_Tbird) | | |
Pretty much the same as I installed on my Bird, use it for the compressor. They are better quality than the auto type sockets & it's best to solder the connections.
Guido.
|
|
| | | MotorMac | | Jupiter | |  | | Reg. Date | : | 29/08/2010 | | Posts | : | 1,926 | | Location | : | Nor Cal, United States |
|
| | Posted : 26 Dec 2013 - 16:44 Post title : Re: Accessory Power Outlet ....FYI (Re: AZ_Tbird) | | | Hi AZ!
Here in the States (and AZ is my fav, BTW) these "Powerlet" sockets are not very useful aside from Triumph's own accessories. Been a few discussions about it here, including this one : Link
I had a cigarette lighter adapter wired and mounted under RH side cover for awhile, but that proved pretty awkward and very inconvenient.
I've since picked up a battery tender Link and wired its two-conductor jack to the terminals meant for the powerlet - which are always live - instead of going to battery lugs. I now have that jack tucked under LH side cover. A common automotive bullet connector, it looks like this:
In addition for use with battery tender, I can plug a phone and (camera) battery charger into it from LH saddlebag, along with an adapter for 5v USB gizmos. Best I could do for an auxiliary power source.....
If anybody wants a powerlet adapter w/mounts and all, I have one I've never mounted or used.
|
|
|
| | | Birdy68 | | Thor | |  | | Reg. Date | : | 16/07/2009 | | Posts | : | 3,352 | | Location | : | Bad Zurzach, Aargau, Switzerland |
|
| | Posted : 07 Jan 2014 - 19:54 Post title : Re: Accessory Power Outlet ....FYI (Re: MotorMac) | | | Hi guys.
I too had the issue that the Triumph OEM socket was the mini version.
So I made this (tacken from another thread in here):
Birdy68 wrote:
OK - so now my phone can charge while I ponder around the Swiss roads - PLUS - I'll be using it as my Optimate (battery tender / charger) input location!
I did look at the OEM socket, but as it's been commented - it's the smaller version of your standard car socket.
So I bought:
- a standard 12V cigerett socket
- black outdoor silicone-filler
- black cables ties

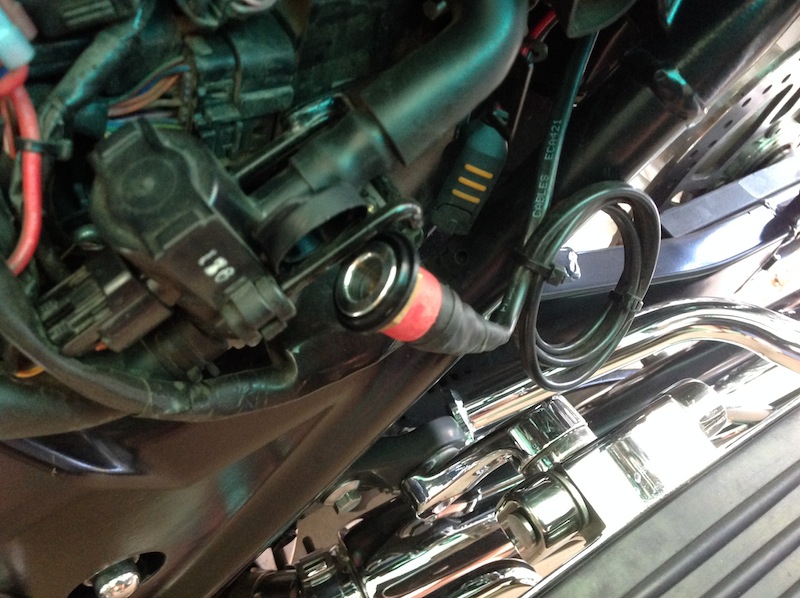

General testing of location - tucked up and under the tank on top of injector air input tubing...
I wired the socket directly to the battery, with a 5A fuse inline.
I wrapped some plastic tubing and black electrical tape around the threading/rear of socket...
Then using some outdoor/all weather/saltwater resistan/-30 to 150 C silicone I...
... 'gundged' up the back of the socket |IMG Src='http://www.thunderbird1600.com/csp/Thunderbird/Images/Emoticons/More/023.gif'>
Then using two black cable ties I fixed the socket on top of the injector/air feed tubing.
Everything works wonderfully!
Total cost:
- SFr. 19.00 Socket
- SFr. 6.90 Silicone (loads left over - can/will be used for future projects)
- SFr. 2.50 Cable ties
---------------------------
SFr. 28.40
Triumph OEM Power Socket
SFr. 45.00 - plus it's the wrong size for me!
Hope this helps someone
|IMG Src='http://www.thunderbird1600.com/csp/Thunderbird/Images/Emoticons/More/032.gif'> |
|
| Birdy68
-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-
Leave the pork pies for now - get the sausage rolls while they're hot!
 -x-  -x-
more info at Fuelly.com
|
|
| | | KingOfFleece | | Set | | | Reg. Date | : | 30/09/2009 | | Posts | : | 304 | | Location | : | United States |
|
| | Posted : 09 Jan 2014 - 17:58 Post title : Re: Accessory Power Outlet ....FYI (Re: AZ_Tbird) | | | As stated, the issue with cig connectors is that they are not rated for heavy draw. Fine for low amp items if you can live with the water issues. Not recommended for heated gear.
BTW-the pre wired Triumph circuit will not support draw over 10 amps if memory serves correct.
|
|
|
| |
| |
|
