| cavallaro | | Set |  | | Reg. Date | : | 26/07/2013 | | Posts | : | 58 | | Location | : | Brazil |
|
| | Posted : 25 Aug 2013 - 20:49 Post title : HEADLIGHT LENS | | | This weekend broke the headlight lens from my Tbird Storm.
Where do I buy the original lens and how to replace?
|
|
|
|
| mjgt | | Thor | |  | | Reg. Date | : | 16/09/2011 | | Posts | : | 2,201 | | Location | : | North Somerset, United Kingdom |
|
| | Posted : 26 Aug 2013 - 07:16 Post title : Re: HEADLIGHT LENS (Re: cavallaro) | | | If it is the same as a speedtriple there is a band that runs around the shell held with a little cross head screw at the bottom. Undo the screw and remove the band the lens will fall out, unplug the connectors and that's it. As it's a fairly standard size a replacement unit should be available quite easily and cheaply, a genuine triumph unit will cost.
| Mick . . .  Keep the rubber side down!!
|
|
|
|
| Jimbo | | Jupiter | |  | | Reg. Date | : | 25/01/2010 | | Posts | : | 1,032 | | Location | : | Queanbeyan, N.S.W., Australia |
|
| | Posted : 26 Aug 2013 - 08:37 Post title : Re: HEADLIGHT LENS (Re: mjgt) | | | Be prepared to PAY - Big Time for a replacement.
Don't know about other places around the world, but here in Oz there is no alternative, other than OEM - at A$400.00!!!
I know; I've also broken one. I now run with a headlight protector; and also on the Auxiliary lights!
Cheers
Jimbo (Vicar)
| Cheers
Jimbo (Bishop)
Keep the black side trackside and the shiny side up!
Veterans MC - Federal Chapter
|
|
|
|
| Druid | | Jupiter | |  | | Reg. Date | : | 14/10/2009 | | Posts | : | 1,359 | | Location | : | United Kingdom |
|
| | Posted : 26 Aug 2013 - 15:25 Post title : Re: HEADLIGHT LENS (Re: cavallaro) | | | post to remove spam
| Socialism is the philosophy of failure, the creed of ignorance, and the gospel of envy, its inherent virtue is the equal sharing of misery - W.Churchill
|
|
|
|
| cavallaro | | Set | | | Reg. Date | : | 26/07/2013 | | Posts | : | 58 | | Location | : | Brazil |
|
| | Posted : 26 Aug 2013 - 16:39 Post title : Re: HEADLIGHT LENS (Re: Druid) | | | Here in my town this Dealers asking around U.S. $ 250,00.
Can anyone tell me the part number, please??
|
|
|
|
| Rachael7 | | Chaac | |  | | Reg. Date | : | 17/05/2013 | | Posts | : | 511 | | Location | : | Greenfield, MA, United States |
|
| | Posted : 26 Aug 2013 - 16:50 Post title : Re: HEADLIGHT LENS (Re: cavallaro) | | | Bike Bandit, at Link , lists it as part number 1397169, $99USD. They show two listings, depending on market (right or left dip, I believe), although oddly, both come back to the same part number.
| 2012 Thunderbird 1600, Short TORS, Triumph performance filter, TORs tune, Longhaul solo seat, Highway Hawk tubular solo rack, Dart flyscreen, engine bars, highway pegs, Clearwater Darla driving lights, custom flash-to-pass switch, Hagon 2810 rears, Thunderbike fork caps, Custom rear sets
|
|
|
|
| ThunderRat | | Jupiter | |  | | Reg. Date | : | 08/03/2010 | | Posts | : | 1,056 | | Location | : | Castle Hill, NSW, Australia |
|
| | Posted : 27 Aug 2013 - 11:04 Post title : Re: HEADLIGHT LENS (Re: cavallaro) | | | It might be a worthwhile option to look at changing the whole light out for a billet headlight. Heaps on E Bay around the $150-$200 range.
| "I started life with nothing and still have most of it left"
|
|
|
|
| mjgt | | Thor | | | | Reg. Date | : | 16/09/2011 | | Posts | : | 2,201 | | Location | : | North Somerset, United Kingdom |
|
| | Posted : 27 Aug 2013 - 14:40 Post title : Re: HEADLIGHT LENS (Re: ThunderRat) | | | They are just ??20 here for a new lens unit.
| Mick . . . Keep the rubber side down!!
|
|
|
|
| cavallaro | | Set | | | Reg. Date | : | 26/07/2013 | | Posts | : | 58 | | Location | : | Brazil |
|
| | Posted : 27 Aug 2013 - 15:11 Post title : Re: HEADLIGHT LENS (Re: mjgt) | | | Have you already seen this protector? What you think about the look?
Link
|
|
|
|
| BizRider | | Set | |  | | Reg. Date | : | 19/04/2013 | | Posts | : | 98 | | Location | : | Pompano Beach, Florida, United States |
|
| | Posted : 29 Aug 2013 - 00:49 Post title : Re: HEADLIGHT LENS (Re: cavallaro) | | | This is what I did: Link
I brought two for my Storm. Fits perfectly. Only had to splice the parking/pilot light into the angel eye connector. Cheaper, brighter, and looks way cooler than stock.
| When life throws me a curve, I lean into it...
|
|
|
|
| cavallaro | | Set | | | Reg. Date | : | 26/07/2013 | | Posts | : | 58 | | Location | : | Brazil |
|
| | Posted : 29 Aug 2013 - 11:50 Post title : Re: HEADLIGHT LENS (Re: BizRider) | | |
BizRider wrote:
This is what I did: Link
I brought two for my Storm. Fits perfectly. Only had to splice the parking/pilot light into the angel eye connector. Cheaper, brighter, and looks way cooler than stock. |
|
I tried to fill the compatibility list and says that this model is not compatible with Tbir Storm. Now I'm in doubt
|
|
|
|
| lockey | | Set | |  | | Reg. Date | : | 07/10/2011 | | Posts | : | 189 | | Location | : | lyme regis, dorset, United Kingdom |
|
| | Posted : 29 Aug 2013 - 13:53 Post title : Re: HEADLIGHT LENS (Re: BizRider) | | |
BizRider wrote:
This is what I did: Link
I brought two for my Storm. Fits perfectly. Only had to splice the parking/pilot light into the angel eye connector. Cheaper, brighter, and looks way cooler than stock. |
|
Please post some pics.
|
|
|
|
|
| BizRider | | Set | | | | Reg. Date | : | 19/04/2013 | | Posts | : | 98 | | Location | : | Pompano Beach, Florida, United States |
|
| | Posted : 29 Aug 2013 - 21:49 Post title : Re: HEADLIGHT LENS (Re: lockey) | | | Here are the pics. The one on the left is the replacement off e-bay. One the right is the OEM original. The replacement is 10mm taller.
 `
 `
 `
Here it is installed side-by-side:
 `
Here's how it turned out:
`
| When life throws me a curve, I lean into it...
| | Post edited by BizRider on 30 Aug 2013 - 01:42 |
|
|
|
| n2dwind | | Set | |  | | Reg. Date | : | 12/07/2010 | | Posts | : | 405 | | Location | : | Jupiter, Florida, United States |
|
| | Posted : 07 Sep 2013 - 20:23 Post title : Re: HEADLIGHT LENS (Re: BizRider) | | | Thanks for this post BizRider. I ordered the lens assembly form the site you posted and it arrived yesterday. Today, it got installed on my 1600 and it was almost a straight swap. I had to bend one part of the ring up a little to slide the thicker lens in but after the snap springs were on, it looks great and also, IMO it has a much better light dispersion than the original. Now I just have to decide if I'm going to hook the "Halo Ring" up to the parking light switch or the aux light switch on the handlebars. I only used the parking light once at a bike night in Ft. Myers and at least 10 "OTHER" bike riders kept stopping to tell me that I had left my lights on. I would tell them that it was parking lights and they just looked at me like I was from another country. After awhile, it became a chore to keep describing parking lights so I turned it off, had the bike over 3 years now and only used the parking light once but I can see that I'll get a lot more enjoyment from the ring around the headlight.
| | Post edited by n2dwind on 07 Sep 2013 - 20:42 |
|
|
|
| fasteddy | | Chaac | |  | | Reg. Date | : | 16/10/2008 | | Posts | : | 963 | | Location | : | Wisconsin, United States |
|
| | Posted : 07 Sep 2013 - 20:52 Post title : Re: HEADLIGHT LENS (Re: n2dwind) | | | How is the night spread and intensity?
eddy
| www.fasteddysports.com
|
|
|
|
| n2dwind | | Set | | | | Reg. Date | : | 12/07/2010 | | Posts | : | 405 | | Location | : | Jupiter, Florida, United States |
|
| | Posted : 07 Sep 2013 - 21:00 Post title : Re: HEADLIGHT LENS (Re: fasteddy) | | | Hi Eddy,
It's still daylight down here in South Florida but I did mention to my wife that I will be adjusting the light after dark so will try to post something with a picture tomorrow (if it doesn't rain)
|
|
|
|
| BizRider | | Set | | | | Reg. Date | : | 19/04/2013 | | Posts | : | 98 | | Location | : | Pompano Beach, Florida, United States |
|
| | Posted : 08 Sep 2013 - 00:50 Post title : Re: HEADLIGHT LENS (Re: n2dwind) | | | Awesome! Glad it worked out for you. I think the obvious way is to hook them up is to the parking lights. You can then order the light control assembly from FastEddy and just let them run in parking light mode during the day. Then, to turn on the lights just toggle the high-beam and you're back to normal.
In my case, since I have a Storm, I needed the dual headlight assembly ( Link ), however Eddy told me they were on back order, so I opted to come up with my own solution.
I added a relay controlled by the aux switch. The relay interrupts the power to the headlights, leaving just the parking lights on. This also helps when starting the engine since all the power from the battery is not wasted on the headlights.
Oh! By the way: After running with the new headlights for a while, I noticed some humidity inside the lens. This was strange since I haven't been riding in the rain so I was puzzled as to why there was trapped condensation. I disassembled the lens noticed that the condensation felt rather oily. I figured it was due to some manufacturing residue that was evaporating inside the lens since they really get hot. I wiped the inside lens and re-assembled everything. I noticed that the rubber seal that came with the lens did not have drain holes, so I swapped them out for the OEM since those seems to have good drainage. I hope that helps to evaporate the condensation.
| When life throws me a curve, I lean into it...
|
|
|
|
| n2dwind | | Set | | | | Reg. Date | : | 12/07/2010 | | Posts | : | 405 | | Location | : | Jupiter, Florida, United States |
|
| | Posted : 09 Sep 2013 - 17:19 Post title : Re: HEADLIGHT LENS (Re: fasteddy) | | |
fasteddy wrote:
How is the night spread and intensity?
eddy |
|

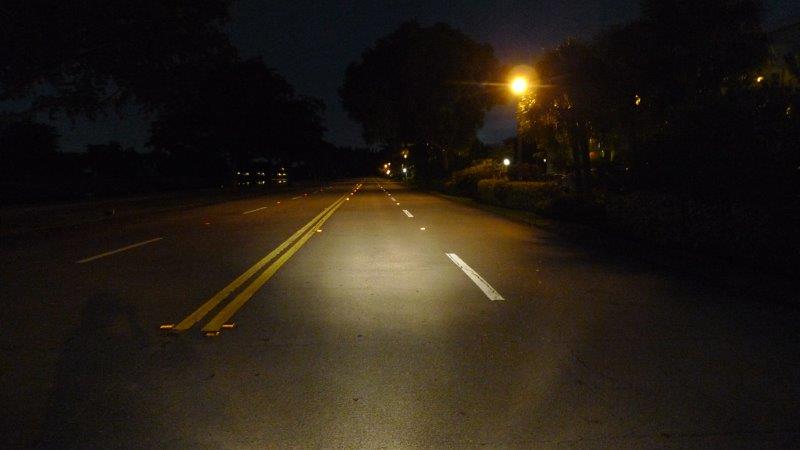

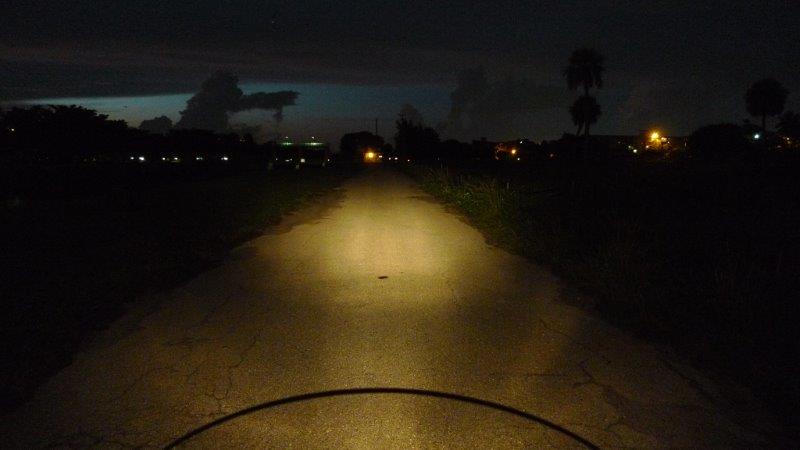

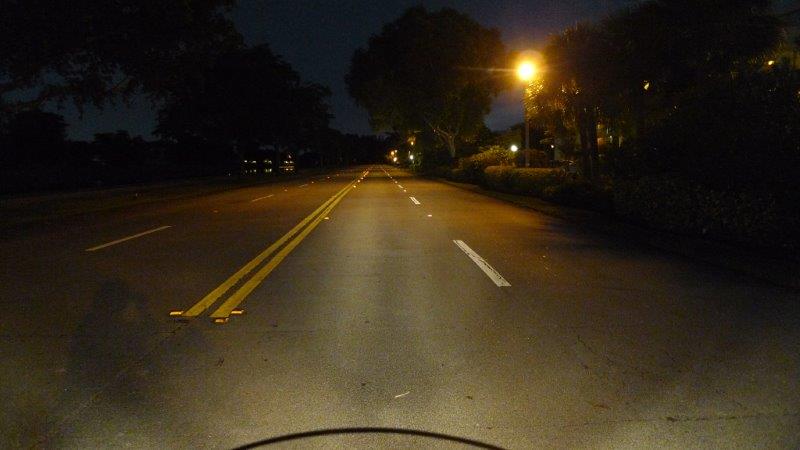

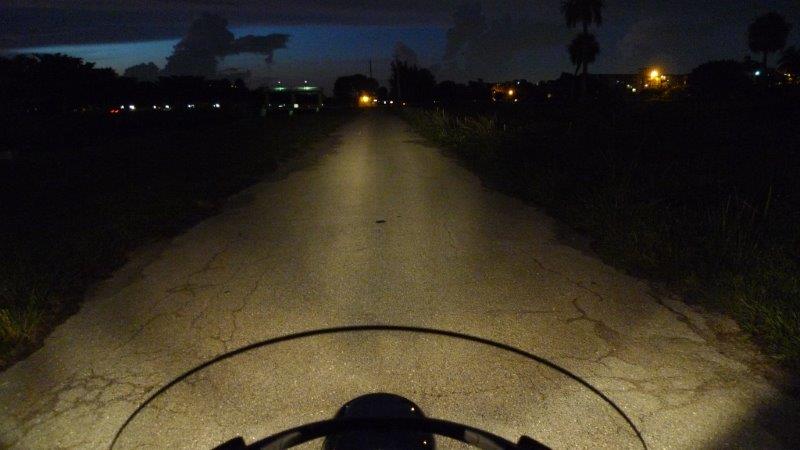

Hi, Took the Bike out last night just after dark to see how it looked on the road and took a couple of pictures of the high and low beam. I used 2 locations, one on a dirt road and one on a paved one. It had just stopped raining so the roads were still wet and didn't show as much light as they would if they were dry.
In my picture album there is a couple of pictures of the stock headlight on this same dirt road so you can see the difference in the dispersal of the light beam.
I like the look and think the light is brighter so I think I'll keep it.
|
|
|
