| Birdy68 | | Thor |  |  | | Reg. Date | : | 16/07/2009 | | Posts | : | 3,352 | | Location | : | Bad Zurzach, Aargau, Switzerland |
|
| | Posted : 22 Jan 2010 - 16:00 Post title : Dual Headlamps On Thunderbird | | | OK... OK... OK... I know a lot of you like the stock headlamp - I respect and appreciate that. Everyone to their own.
But for those interested in fitting dual head lamp - such as the Rocket III or Street Triple, this is the thread to watch!

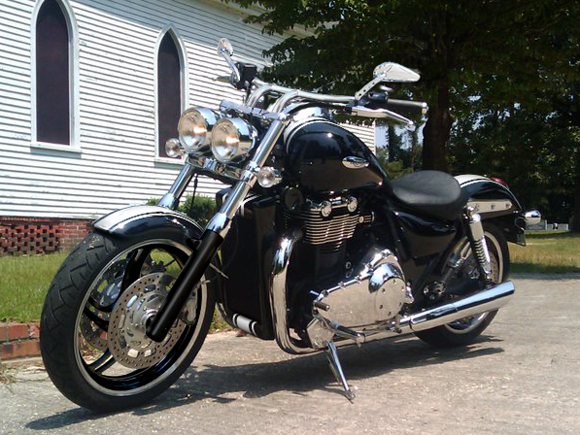

Some of you already know that I chopped away at one of Thatch's photos last year to help 'en-vision' my future Raven  If you didn't - here it is:

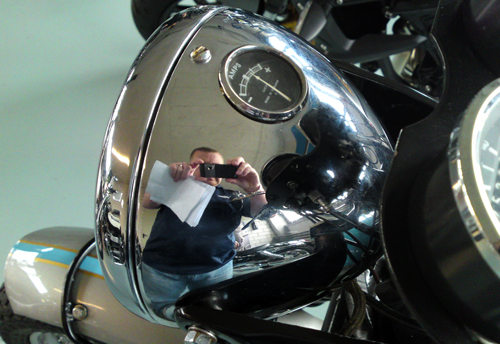

I would also like to have an Ampere- and Volt Meter in the top of the lamps at some point - like this:
But that will have to wait until stage 1 - 'Dual Lamps' - is installed and completed!
So - here's the GOOD NEWS...
As I said last week Roger and myself were sketching away at ideas for a fitting to support the Rocket III headlamp set-up.

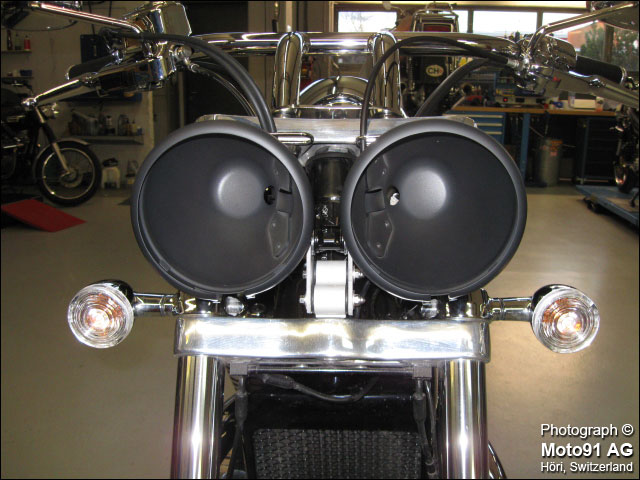

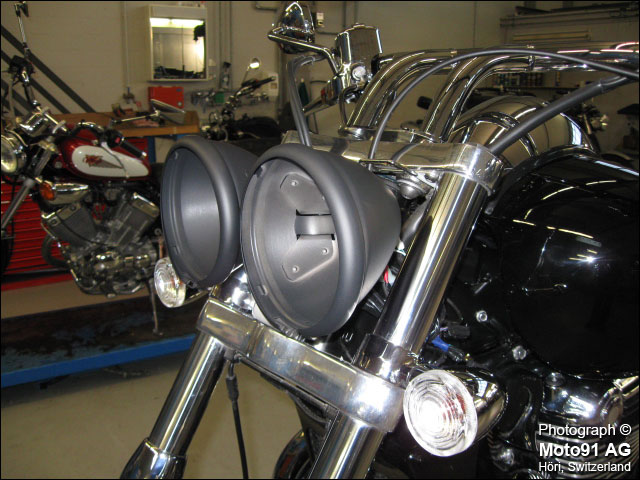

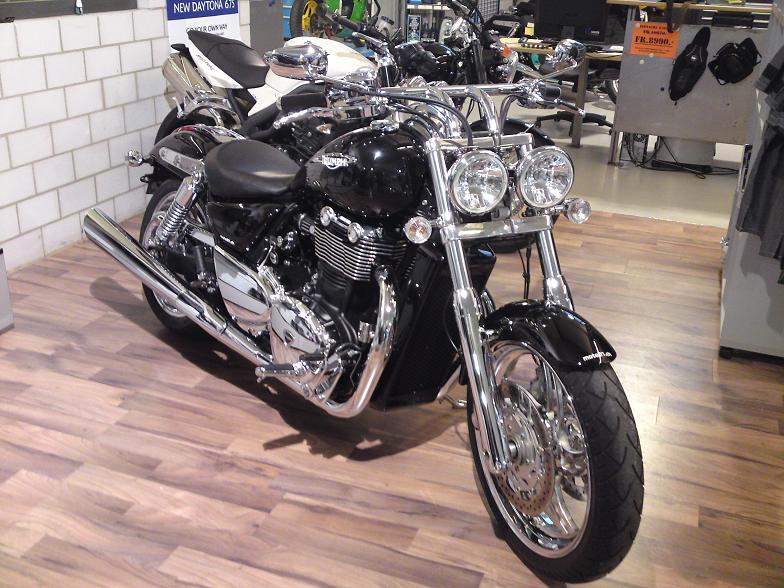

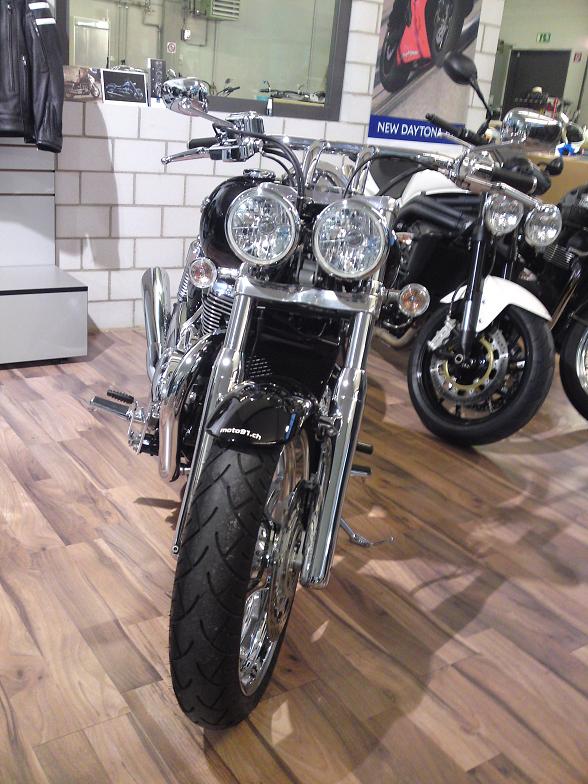

At the end of the day, Roger came up with is:
(Photos used with kind permission of Moto91 AG)
Hope you're not angered with me having to imprint the Copyright on the picture?

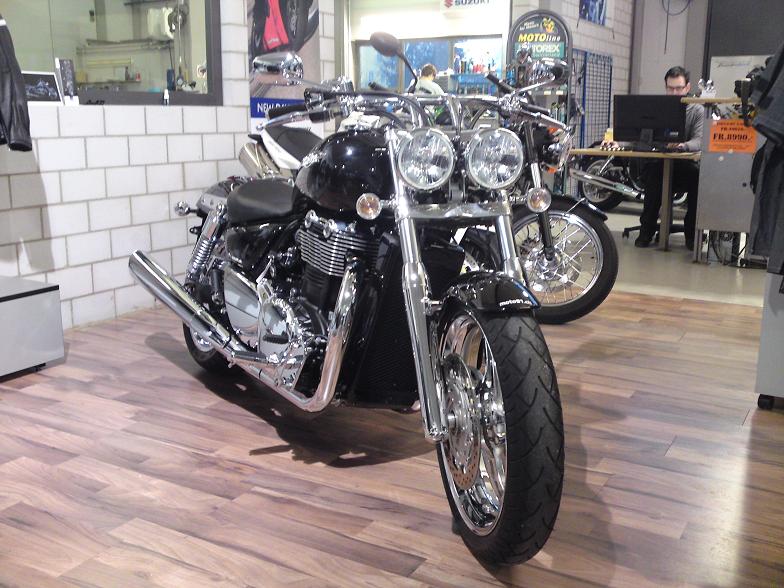

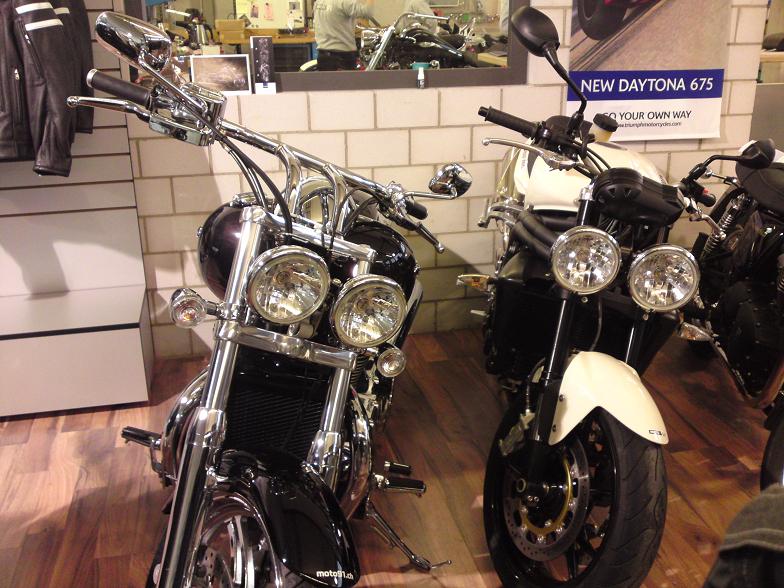

NOTE: The headlamp shells shown here - matt black - are taken from the Street Triple for demonstration purposes. The final version will be the Chrome lamps.

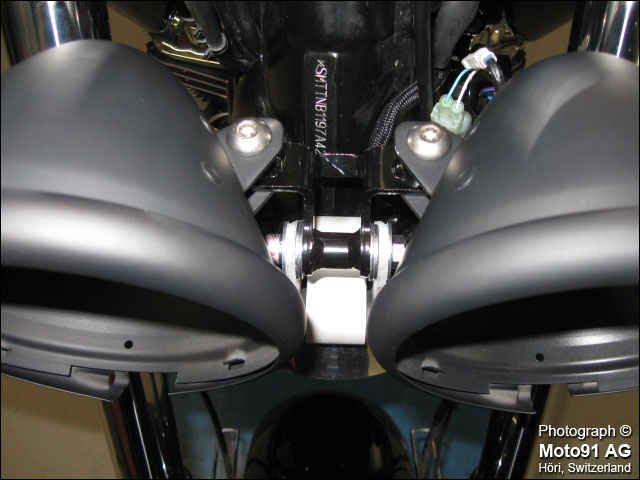

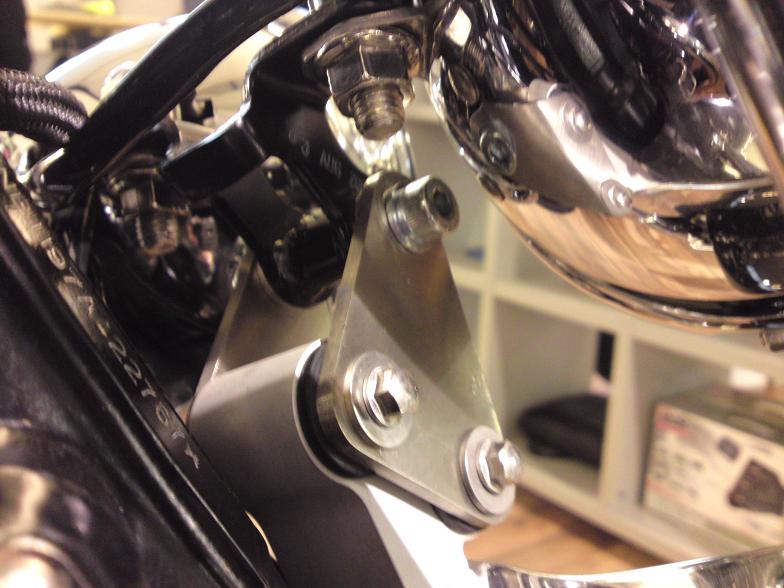

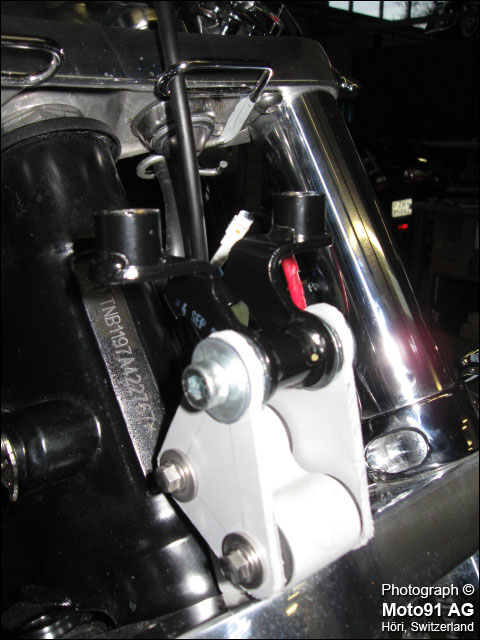

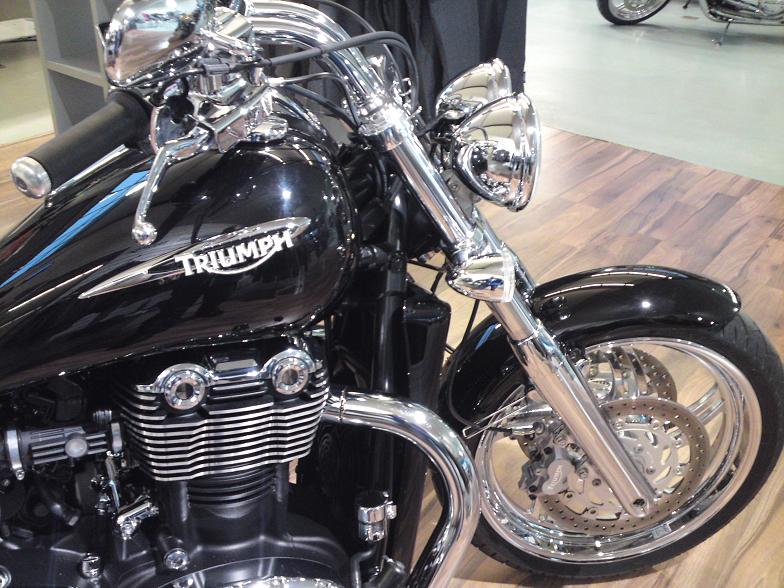

Here you can see the existing fitting with the required 'Triangle' adapters that allow the Rocket III fitting to be installed (upside down).
The triangles shown here are plastic at the moment - but are currently being produced in polished aluminum.
So - once those triangle pieces come in - I'll be down to my dealer again and shoot some more pictures!
Hope this has helped some of you with your ideas.
Stay tuned for more information....!
| Birdy68
-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-
Leave the pork pies for now - get the sausage rolls while they're hot!
 -x-  -x-
more info at Fuelly.com
|
|
|
|
| Thatch | | Thor | |  | | Reg. Date | : | 24/06/2009 | | Posts | : | 3,655 | | Location | : | Savannah, GA, United States |
|
| | Posted : 22 Jan 2010 - 16:13 Post title : Re: Dual Headlamps On Thunderbird (Re: Birdy68) | | | And here I thought you had gotten past this madness....
Don't mind me, I just love the stock can and can't imagine swapping it out. Looks like it will be a nice clean install though. I'm interested to see the final product. Hate to admit it but it looks good.
|
|
|
|
| Birdy68 | | Thor | | | | Reg. Date | : | 16/07/2009 | | Posts | : | 3,352 | | Location | : | Bad Zurzach, Aargau, Switzerland |
|
| | Posted : 22 Jan 2010 - 16:17 Post title : Re: Dual Headlamps On Thunderbird (Re: Thatch) | | |
Thatch wrote:
And here I thought you had gotten past this madness.... |
|
Hell no!  Life would be boring if I were to become normal...
(so my wife says  )
| Birdy68
-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-
Leave the pork pies for now - get the sausage rolls while they're hot!
-x- -x-
more info at Fuelly.com
|
|
|
|
| odamus | | Set | | | Reg. Date | : | 21/01/2010 | | Posts | : | 56 | | Location | : | Australia |
|
| | Posted : 23 Jan 2010 - 04:57 Post title : Re: Dual Headlamps On Thunderbird (Re: Birdy68) | | |
Damn I have to say I hink that looks awesome!
I was actually toying with the idea of a HD Fatbob before putting my deposit down on the TB and one of the things that I didnt like about it was the dual headlight.
For some reason though those prelim pics have me thinking that the dual headlight might be the way to go on the Tbird.
Very much looking forward to seeing the final fitting.
Did you have any dramas getting the factory tbars? No date in Oz for their delivery as yet.
|
|
|
|
| stevew | | Set | |  | | Reg. Date | : | 02/10/2009 | | Posts | : | 477 | | Location | : | Newcastle, N.S.W., Australia |
|
| | Posted : 29 Jan 2010 - 19:49 Post title : Re: Dual Headlamps On Thunderbird (Re: Birdy68) | | | The brackets are spot on,can you give me the sizes etc so I can fabricate a set.
PM sent also
Stevew
|
|
|
|
| Birdy68 | | Thor | | | | Reg. Date | : | 16/07/2009 | | Posts | : | 3,352 | | Location | : | Bad Zurzach, Aargau, Switzerland |
|
| | Posted : 11 Feb 2010 - 18:07 Post title : Re: Dual Headlamps On Thunderbird (Re: stevew) | |
|
|

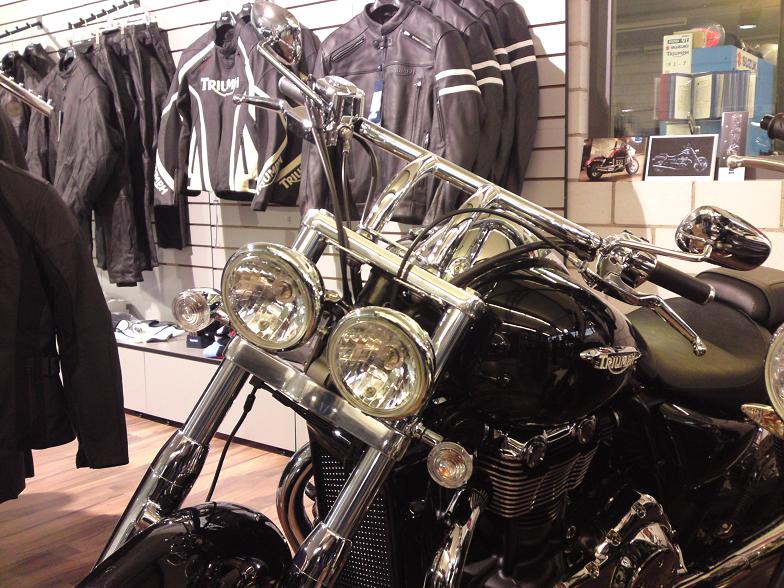

| Thatch | | Thor | | | | Reg. Date | : | 24/06/2009 | | Posts | : | 3,655 | | Location | : | Savannah, GA, United States |
|
| | Posted : 11 Feb 2010 - 18:20 Post title : Re: Dual Headlamps On Thunderbird (Re: Birdy68) | | | Looking good Birdy. I especially like the tank badges. Now if you could just ride the damn thing. :)
So what's this with the Moto3 branding you've got on there?
|
|
|
|
| Birdy68 | | Thor | | | | Reg. Date | : | 16/07/2009 | | Posts | : | 3,352 | | Location | : | Bad Zurzach, Aargau, Switzerland |
|
| | Posted : 11 Feb 2010 - 18:33 Post title : Re: Dual Headlamps On Thunderbird (Re: Thatch) | | |
Thatch wrote:
...So what's this with the Moto3 branding you've got on there? |
|
 errr..... do you mean the silly 'Moto91.ch' on the tip of the front fender?
Yeah... I know.... I'll 'peal' it off when I bring her home (once the weather has cleared!)
| Birdy68
-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-
Leave the pork pies for now - get the sausage rolls while they're hot!
-x- -x-
more info at Fuelly.com
|
|
|
|
| Thatch | | Thor | | | | Reg. Date | : | 24/06/2009 | | Posts | : | 3,655 | | Location | : | Savannah, GA, United States |
|
| | Posted : 11 Feb 2010 - 18:36 Post title : Re: Dual Headlamps On Thunderbird (Re: Birdy68) | | | Yeah 91 ... don't pick on the grandpa. I can see enough to ride, that's all I need.
|
|
|
|
| panas | | Set | |  | | Reg. Date | : | 20/10/2009 | | Posts | : | 40 | | Location | : | Krakow, Poland |
|
| | Posted : 12 Feb 2010 - 09:45 Post title : Re: Dual Headlamps On Thunderbird (Re: Birdy68) | | | Great job Birdy !! It looks very very NICE (...and like a factory option) !!

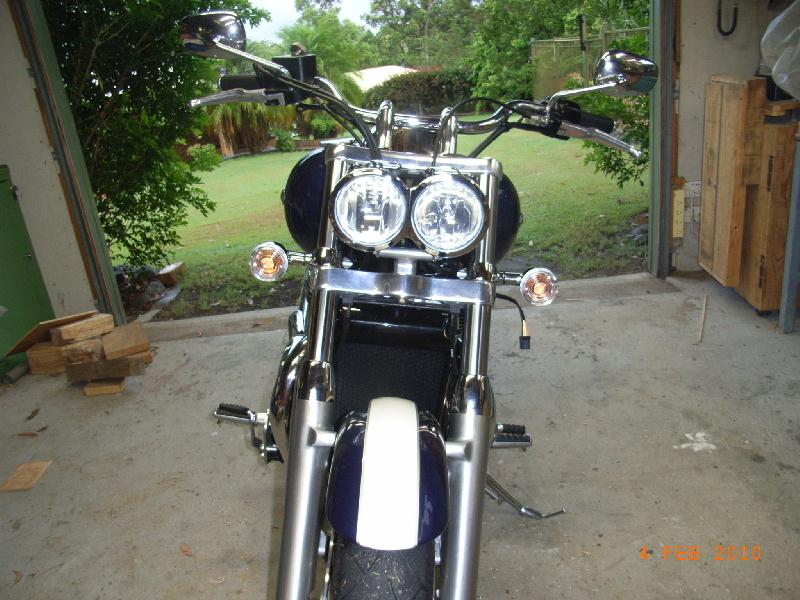

I wonder how it could look with the blue/white Tbird...
| Thunderbird 1600, blue/white, ABS
|
|
|
|
| opium89 | | Set | | | Reg. Date | : | 12/12/2008 | | Posts | : | 100 | | Location | : | Austin, Texas, United States |
|
| | Posted : 16 Feb 2010 - 02:17 Post title : Re: Dual Headlamps On Thunderbird (Re: panas) | | | Awesome, simply awesome. Now where did you get those tank badges?
|
|
|
|
| Birdy68 | | Thor | | | | Reg. Date | : | 16/07/2009 | | Posts | : | 3,352 | | Location | : | Bad Zurzach, Aargau, Switzerland |
|
| | Posted : 17 Feb 2010 - 12:27 Post title : Re: Dual Headlamps On Thunderbird (Re: opium89) | | | opium89 wrote:
Awesome, simply awesome. Now where did you get those tank badges? |
|
They are the Rocket III Touring badges. Actually they are all chrome - so I did a bit of painting.
More info is here in the Tank Badge Opptions
You'll have to scroll down a little.
| Birdy68
-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-
Leave the pork pies for now - get the sausage rolls while they're hot!
-x- -x-
more info at Fuelly.com
|
|
|
|
| fab | | Thor | |  | | Reg. Date | : | 12/10/2009 | | Posts | : | 2,515 | | Location | : | wyong, nsw, Australia |
|
| | Posted : 27 Feb 2010 - 02:54 Post title : Re: Dual Headlamps On Thunderbird (Re: Birdy68) | | | went to my dealer today and looked at a rocket tank badges and the left badge is much smaller than the right because of the intake manifold.
so i went to the spare parts counter to see if there is a different model rocket badge that are both the same but doesn't look like there is?:
looks like i will have to find something different(i really liked those badges )
have you got your left one yet birdy?
|
Remember, soft cocks hang around all life long, hard ones come and go
ahh f**k im deep
|
|
|
|
| Birdy68 | | Thor | | | | Reg. Date | : | 16/07/2009 | | Posts | : | 3,352 | | Location | : | Bad Zurzach, Aargau, Switzerland |
|
| | Posted : 27 Feb 2010 - 19:55 Post title : Re: Dual Headlamps On Thunderbird (Re: fab) | | |
fab wrote:
...have you got your left one yet birdy? |
|
Yup you can see them both in this video clip:
| Birdy68
-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-
Leave the pork pies for now - get the sausage rolls while they're hot!
-x- -x-
more info at Fuelly.com
|
|
|
|
| fab | | Thor | | | | Reg. Date | : | 12/10/2009 | | Posts | : | 2,515 | | Location | : | wyong, nsw, Australia |
|
| | Posted : 28 Feb 2010 - 08:43 Post title : Re: Dual Headlamps On Thunderbird (Re: Birdy68) | | | I should have watched the video,do you have the part number for the left side?
|
Remember, soft cocks hang around all life long, hard ones come and go
ahh f**k im deep
|
|
|
|
| Birdy68 | | Thor | | | | Reg. Date | : | 16/07/2009 | | Posts | : | 3,352 | | Location | : | Bad Zurzach, Aargau, Switzerland |
|
| | Posted : 28 Feb 2010 - 08:50 Post title : Re: Dual Headlamps On Thunderbird (Re: fab) | | | Sorry - I threw the plastic bags away!
But I'm sure your dealer can find it out on hand from the Right side part number  Maybe...?
| Birdy68
-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-
Leave the pork pies for now - get the sausage rolls while they're hot!
-x- -x-
more info at Fuelly.com
|
|
|
|
| Dyepes | | Set | |  | | Reg. Date | : | 04/10/2010 | | Posts | : | 2 | | Location | : | Texas, United States |
|
| | Posted : 04 Oct 2010 - 15:31 Post title : Re: Dual Headlamps On Thunderbird (Re: Birdy68) | | | Love the look of your Raven.... I have just received my T Bird after several months of "thinking" about it. Just love it. I had the same notion to double up on the headlights and the thought of the HD fat Bobs ran across my mind until I ran across your custom setup and I fell in love with it. My biggest thing is the size of the triangle brackets that you custom made. Any way you can share the dimensions so that I can duplicate on my end? Any help would be appreciated. Thanks!
|
|
|
|
| Birdy68 | | Thor | | | | Reg. Date | : | 16/07/2009 | | Posts | : | 3,352 | | Location | : | Bad Zurzach, Aargau, Switzerland |
|
| | Posted : 05 Oct 2010 - 09:52 Post title : Re: Dual Headlamps On Thunderbird (Re: Dyepes) | | |  Dyepes, and WELCOME sir
No worries - I'll try to get the dimensions as soon as possible.
Be warned through... Those 'Original Triumph Parts - Dual Head Lamps' are NOT cheep!!!
But they are original  and nice and quality and sexy and, and, and...
| Birdy68
-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-x-
Leave the pork pies for now - get the sausage rolls while they're hot!
-x- -x-
more info at Fuelly.com
|
|
|
|
| Thatch | | Thor | | | | Reg. Date | : | 24/06/2009 | | Posts | : | 3,655 | | Location | : | Savannah, GA, United States |
|
| | Posted : 05 Oct 2010 - 11:25 Post title : Re: Dual Headlamps On Thunderbird (Re: Birdy68) | | | Doesn't look like you'll have to fabricate anything now. Look in the lounge, I've just posted pics of the new tbird storm. It has duals and therefore the mounting hardware needed. I don't know if those are just RIII lights slapped on the bird or not but I would suspect that they are. Would be good if they are since the storm lights have a blacked out bucket which you probably wouldn't want.
good luck
|
|
|
|
| Birdy68 | | Thor | | | | Reg. Date | : | 16/07/2009 | | Posts | : | 3,352 | | Location | : | Bad Zurzach, Aargau, Switzerland |
|
| | Posted : 05 Oct 2010 - 12:44 Post title : Re: Dual Headlamps On Thunderbird (Re: Thatch) | | | Thatch wrote:
Doesn't look like you'll have to fabricate anything now. |
|
Yup, as Thatch says - I think you could order one of the Storm set-ups and simply exchange the rear light buckets for chrome ones!?

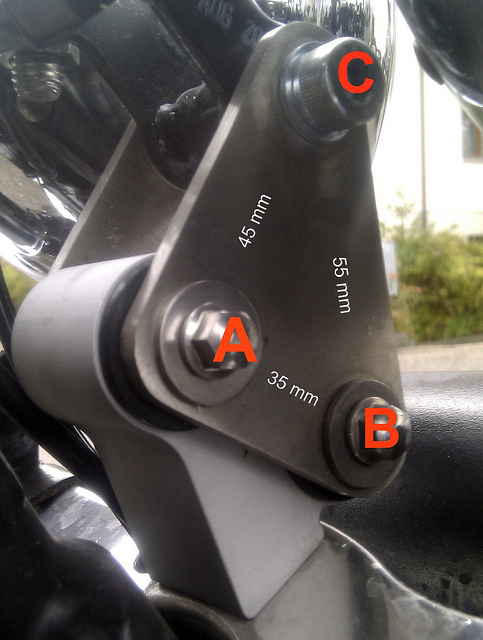

But if you'd like to fabricate the triangular piece, then here you go - some pictures...
