| | Posted : 18 Mar 2011 - 11:01 Post title : Auxilliary Power Socket | | | Auxilliary Power Socket -
has anyone else ordered one and fitted it themselves, ....is it an easy job ?anything to look out for ?
Thanks
John
| Thread Killer Extraordinaire
|
|
|
|
| mat1600 | | Thunderbird | |  | | Reg. Date | : | 06/03/2010 | | Posts | : | 8,596 | | Location | : | Bridlington, Democratic Independant State of Yorkshire, United Kingdom |
|
| | Posted : 18 Mar 2011 - 11:31 Post title : Re: Auxilliary Power Socket (Re: sprint5t) | | | Just fitted a marine version. Put a 15 amp inline fuse , straight to the battery. Mounted it up front behind my mini screen so I can use it for a USB or aux light etc. Also got heated glove wired in direct and sat nav, so the aux plug is always free- ish.
I used heat shrink wire fittings and an armoured cable rubber shroud for the back of the plug.
| My first natural instinct is to breathe. My second is to evade tax's.
|
|
|
|
| narsisco_lopez | | Thor | |  | | Reg. Date | : | 09/09/2010 | | Posts | : | 2,765 | | Location | : | Golden (Showers!), Colorado, United States |
|
| | Posted : 18 Mar 2011 - 11:57 Post title : Re: Auxilliary Power Socket (Re: sprint5t) | | | sprint5t wrote:
Auxilliary Power Socket -
has anyone else ordered one and fitted it themselves, ....is it an easy job ?anything to look out for ?
Thanks
John |
|
John, there's been several threads on this topic under the "Accessories" section, including this one... Aux Plug
| 2012 Storm (SOLD!)
Other Bikes:
2003 Suzuki DRZ400E (plated - my dual sport/mountain trail/camping bike)
Past Bikes:
2012 K13S
2009 KTM 990 Adventure
2010 Triumph Thunderbird 1600 (the Alien Queen)
2009 Triumph Sprint ST (another great bike!)
2007 Kawasaki ZX10R
2000 Kawasaki ZRX1100
1975 Honda SB550T "Clubman"
1981 Kawasaki KZ1000J
1985 Suzuki GS550E
1978 Yamaha 650 Special
|
|
|
|
| molinoman | | Set | |  | | Reg. Date | : | 26/09/2010 | | Posts | : | 189 | | Location | : | Molino, Florida, United States |
|

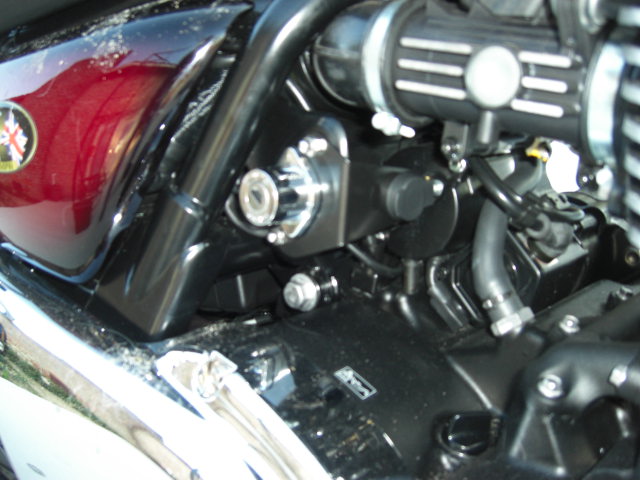

| | Posted : 18 Mar 2011 - 13:34 Post title : Re: Auxilliary Power Socket (Re: sprint5t) | | | Here is where the OEM one goes...had mine done by the dealer...took a while for me to find it when I picked it up.
Right behind the ignition switch.
Good luck.
Dennis
103 dtg Dubai
104 dtg Home for good!
| Last bike owned:
2007 Triumph Rocket III (sold in April, 2010)
Have finally ridden my 2010 Phantom Red Haze Thunderbird, picked it up in Feb 09, 2011, enjoyed the ride...now I am back in the sand box.
| | Post edited by molinoman on 18 Mar 2011 - 13:35 |
|
|
|
| stripygitface | | Set | | | Reg. Date | : | 31/08/2010 | | Posts | : | 132 | | Location | : | Rochester, Kent, United Kingdom |
|
| | Posted : 21 Mar 2011 - 09:07 Post title : Re: Auxilliary Power Socket (Re: sprint5t) | | |
sprint5t wrote:
Auxilliary Power Socket -
has anyone else ordered one and fitted it themselves, ....is it an easy job ?anything to look out for ?
Thanks
John |
|
This is a very easy job, just undo 2 bolts holding the ignition switch in place, fit the bracket and plug in the connector which is allready in place but taped up with blue tape, behind the right hand side panel, then reffit the ignition switch with the 2 new bolts provided.
Takes max about 1/2 a hour.
|
|
|
|
| Druid | | Jupiter | |  | | Reg. Date | : | 14/10/2009 | | Posts | : | 1,359 | | Location | : | United Kingdom |
|
| | Posted : 21 Mar 2011 - 18:56 Post title : Re: Auxilliary Power Socket (Re: stripygitface) | | | I often thought about one to run a sat nav. The mini socket one Triumph use , how do you plug a tom tom into it ? Is it the same a a BMW accessory socket? Another nooooby question can you trickle charge with it or indeed jump start another bike with it?
Whats my name and why am I here? Why is the sky blue and why are girls so odd ? All these questions and more answered on the thunderbird1600 forum
| Socialism is the philosophy of failure, the creed of ignorance, and the gospel of envy, its inherent virtue is the equal sharing of misery - W.Churchill
|
|
|
|
| narsisco_lopez | | Thor | | | | Reg. Date | : | 09/09/2010 | | Posts | : | 2,765 | | Location | : | Golden (Showers!), Colorado, United States |
|
| | Posted : 21 Mar 2011 - 19:31 Post title : Re: Auxilliary Power Socket (Re: Druid) | | | Druid wrote:
I often thought about one to run a sat nav. The mini socket one Triumph use , how do you plug a tom tom into it ? Is it the same a a BMW accessory socket? Another nooooby question can you trickle charge with it or indeed jump start another bike with it?
Whats my name and why am I here? Why is the sky blue and why are girls so odd ? All these questions and more answered on the thunderbird1600 forum |
|
1. Yes, you can plug your trickle charger straight into it (as long as you didn't rewire it to be keyed from the ignition).
2. Yes, you could jump-start another bike, but probably not very advisable to do it on a regular basis.
3. I don't know your name OR why you're here, but I'm betting it's NOT for the free beer.
4. The sky is blue because you have your head jammed in the sleeve of your blue rain hoodie again.
5. The girls are so odd because they are boys.

| 2012 Storm (SOLD!)
Other Bikes:
2003 Suzuki DRZ400E (plated - my dual sport/mountain trail/camping bike)
Past Bikes:
2012 K13S
2009 KTM 990 Adventure
2010 Triumph Thunderbird 1600 (the Alien Queen)
2009 Triumph Sprint ST (another great bike!)
2007 Kawasaki ZX10R
2000 Kawasaki ZRX1100
1975 Honda SB550T "Clubman"
1981 Kawasaki KZ1000J
1985 Suzuki GS550E
1978 Yamaha 650 Special
|
|
|
|
| Druid | | Jupiter | | | | Reg. Date | : | 14/10/2009 | | Posts | : | 1,359 | | Location | : | United Kingdom |
|
| | Posted : 21 Mar 2011 - 19:56 Post title : Re: Auxilliary Power Socket (Re: narsisco_lopez) | | | See....
Re question 5 . Are you intimating that I frequent strange bars in Thailand Mr narsisco_lopez
| Socialism is the philosophy of failure, the creed of ignorance, and the gospel of envy, its inherent virtue is the equal sharing of misery - W.Churchill
| | Post edited by Druid on 21 Mar 2011 - 20:02 |
|
|
|
| zolti | | Thor | |  | | Reg. Date | : | 23/03/2010 | | Posts | : | 3,127 | | Location | : | newcastle , United Kingdom |
|
| | Posted : 21 Mar 2011 - 21:08 Post title : Re: Auxilliary Power Socket (Re: Druid) | | |
Druid wrote:
Whats my name and why am I here? Why is the sky blue and why are girls so odd ? All these questions and more answered on the thunderbird1600 forum |
|
your name is druid
your here because the pub is shut
natural luminosity of oxygen
because they are, to us anyway, "opposites attract", if they wernt odd you might fancy mat
|
|
|
|
| mat1600 | | Thunderbird | | | | Reg. Date | : | 06/03/2010 | | Posts | : | 8,596 | | Location | : | Bridlington, Democratic Independant State of Yorkshire, United Kingdom |
|
| | Posted : 21 Mar 2011 - 21:11 Post title : Re: Auxilliary Power Socket (Re: Druid) | | | I have put the standard cigar type on. You can get a plug in USB to slot in so you can charge n go. Wired my sat nav direct to the bat via an inline water proof fuse. Simples. Took 6 months thinking about it and ten mins to wire it. Take your seat off and the wires tuck under the tank - no need to remove tank.
| My first natural instinct is to breathe. My second is to evade tax's.
|
|
|
|
| narsisco_lopez | | Thor | | | | Reg. Date | : | 09/09/2010 | | Posts | : | 2,765 | | Location | : | Golden (Showers!), Colorado, United States |
|
| | Posted : 21 Mar 2011 - 21:30 Post title : Re: Auxilliary Power Socket (Re: Druid) | | |
Druid wrote:
See....
Re question 5 . Are you intimating that I frequent strange bars in Thailand Mr narsisco_lopez |
|
Or that you need a bit stronger prescription on your contact lens/spectacles
| 2012 Storm (SOLD!)
Other Bikes:
2003 Suzuki DRZ400E (plated - my dual sport/mountain trail/camping bike)
Past Bikes:
2012 K13S
2009 KTM 990 Adventure
2010 Triumph Thunderbird 1600 (the Alien Queen)
2009 Triumph Sprint ST (another great bike!)
2007 Kawasaki ZX10R
2000 Kawasaki ZRX1100
1975 Honda SB550T "Clubman"
1981 Kawasaki KZ1000J
1985 Suzuki GS550E
1978 Yamaha 650 Special
|
|
|
|
| weatherman | | Set | |  | | Reg. Date | : | 19/02/2009 | | Posts | : | 232 | | Location | : | Vista, Ca, United States |
|
| | Posted : 22 Mar 2011 - 04:31 Post title : Re: Auxilliary Power Socket (Re: sprint5t) | | | John,
There is a (what I call a ford plug) on the left side of the bike. Remove the left side cover (see owners manual) and wire-tied to the frame on the right side looking under the cover you will see it. A two prong plug which I believe is direct wired to the battery (+&-). I used a female/male mate to the plug to adapt a female auto accessory plug which I attach my 12 volt equipment to when needed. Best to put an inline fuse with it.
Just one more way to get 12 volts when needed especially at the rear half of the bike. Example heated clothing, chargers and such used in the saddlebags or tailbags.
I think this must be a way to connect a trickle charger to the bike. Best to pull the main power fuse when charging with this connection to avoid feeding power to something that shouldn't be powered as a trickle charger or the like does.
| If there's a T-bird in the garage then your either sick, broke or missing the time of your life.
Get out and ride that Bird.
The Tbird arrived June 26, 2009 - Speedy was traded in June for a 2012 Bonnie T100.
| | Post edited by weatherman on 22 Mar 2011 - 04:38 |
|
|
|
| sprint5t | | Set | | | | Reg. Date | : | 07/02/2011 | | Posts | : | 355 | | Location | : | Ely, Cambridgeshire, United Kingdom |
|
| | Posted : 22 Mar 2011 - 14:38 Post title : Re: Auxilliary Power Socket (Re: stripygitface) | | |
stripygitface wrote:
sprint5t wrote:
Auxilliary Power Socket -
has anyone else ordered one and fitted it themselves, ....is it an easy job ?anything to look out for ?
Thanks
John |
|
This is a very easy job, just undo 2 bolts holding the ignition switch in place, fit the bracket and plug in the connector which is allready in place but taped up with blue tape, behind the right hand side panel, then reffit the ignition switch with the 2 new bolts provided.
Takes max about 1/2 a hour. |
|
Thank you Stripygitface thats exactly what I was looking for. .... PS I rode through the Medway towns last week on my way to Folkestone.
John
| Thread Killer Extraordinaire
|
|
|
|
| sprint5t | | Set | | | | Reg. Date | : | 07/02/2011 | | Posts | : | 355 | | Location | : | Ely, Cambridgeshire, United Kingdom |
|
| | Posted : 22 Mar 2011 - 14:39 Post title : Re: Auxilliary Power Socket (Re: weatherman) | | |
weatherman wrote:
John,
There is a (what I call a ford plug) on the left side of the bike. Remove the left side cover (see owners manual) and wire-tied to the frame on the right side looking under the cover you will see it. A two prong plug which I believe is direct wired to the battery (+&-). I used a female/male mate to the plug to adapt a female auto accessory plug which I attach my 12 volt equipment to when needed. Best to put an inline fuse with it.
Just one more way to get 12 volts when needed especially at the rear half of the bike. Example heated clothing, chargers and such used in the saddlebags or tailbags.
I think this must be a way to connect a trickle charger to the bike. Best to pull the main power fuse when charging with this connection to avoid feeding power to something that shouldn't be powered as a trickle charger or the like does. |
|
Thank you Weatherman, this is very useful information if I need to look for an additional power source.
Thanks
John
| Thread Killer Extraordinaire
|
|
|
|
| zolti | | Thor | | | | Reg. Date | : | 23/03/2010 | | Posts | : | 3,127 | | Location | : | newcastle , United Kingdom |
|
| | Posted : 01 May 2011 - 18:51 Post title : Re: Auxilliary Power Socket (Re: sprint5t) | | | i have been trying to fit the aux plug which seemed to be an easy job until i got to the connector.
i cannot get the connector to stretch to the plug.
i can get it through the bundle of wiring from the top right of the side panel ( panel removed) behind the flange but no further than the top rear edge of the ignition
now then
i have just got the bike back from a coolant warrenty issue where they would have removed the throttle bodies to relpace the o ring gasket on the stat and the sensor under it. i dont know if they have twisted, pushed or mangled the wires between the airbox/ throttle bodies and the flange on the frame.
i found the connector between the locator for the side panel and the top right frame flange ( purple and black wiring) with a blue tape. it took well over an hour to loosen it and feed it to the back of the aux bracket only to find there is absolutly NO slack and i need about another 75mm or less of stretch
has anyone done this and found the location of the connector in a different place,
had any fouling issues with the wire
or found it cant reach?
|
|
|
|
| Druid | | Jupiter | | | | Reg. Date | : | 14/10/2009 | | Posts | : | 1,359 | | Location | : | United Kingdom |
|
| | Posted : 01 May 2011 - 19:11 Post title : Re: Auxilliary Power Socket (Re: zolti) | | | Yeah they sell an extender wire would you believe . Amazing they dont provide one the correct size isnt it? Seem to remember reading this before Zolti.
| Socialism is the philosophy of failure, the creed of ignorance, and the gospel of envy, its inherent virtue is the equal sharing of misery - W.Churchill
|
|
|
|
| davetac1 | | Thunderbird | | | Reg. Date | : | 06/09/2010 | | Posts | : | 8,379 | | Location | : | Haverhill, Ma., United States |
|
| | Posted : 02 May 2011 - 03:42 Post title : Re: Auxilliary Power Socket (Re: Druid) | | | I have another stupid question,if you guys don't mind me askin.Following this thread,are you guys sayin that there is a spare fused factory connector plug somewheres near the fuse box for aux equipment power??? Or did I misunderstand the thread.I haven't really studied my SM for this yet ,instead just using the dealer installed battery tender connector plug [7 1/2 amp fuse] or my heated electric clothing connector plug [15 amp fuse],which I installed, both connected directly to the battery,for aux power.SO?????? Thank you. Dave!!!
| | Post edited by davetac1 on 02 May 2011 - 03:47 |
|
|
|
| zolti | | Thor | | | | Reg. Date | : | 23/03/2010 | | Posts | : | 3,127 | | Location | : | newcastle , United Kingdom |
|
| | Posted : 02 May 2011 - 07:10 Post title : Re: Auxilliary Power Socket (Re: davetac1) | | |
davetac1 wrote:
I have another stupid question,if you guys don't mind me askin.Following this thread,are you guys sayin that there is a spare fused factory connector plug somewheres near the fuse box for aux equipment power??? Or did I misunderstand the thread.I haven't really studied my SM for this yet ,instead just using the dealer installed battery tender connector plug [7 1/2 amp fuse] or my heated electric clothing connector plug [15 amp fuse],which I installed, both connected directly to the battery,for aux power.SO?????? Thank you. Dave!!! |
|
yes there is
|
|
|
|
| zolti | | Thor | | | | Reg. Date | : | 23/03/2010 | | Posts | : | 3,127 | | Location | : | newcastle , United Kingdom |
|
| | Posted : 02 May 2011 - 07:16 Post title : Re: Auxilliary Power Socket (Re: Druid) | | |
Druid wrote:
Yeah they sell an extender wire would you believe . Amazing they dont provide one the correct size isnt it? Seem to remember reading this before Zolti. |
|
what!!
WHAT SORT OF PILLOCK would sell a part that needed another part and not tell you..... ( i know the answer)
and why would it not be in the instructions??
Locate the two-pin electrical connector
marked with blue tape, near the electrical
connector for the motorcycle alarm. Fit the
connector to the connectors on the back of
the auxiliary power socket.
a visit to the dealer is imminent also as they didnt strap the battery in
thanks fo the info druid
|
|
|
