| | Posted : 15 Feb 2024 - 19:46 Post title : Diagnostic connector pinout verification | | | Hi guys,

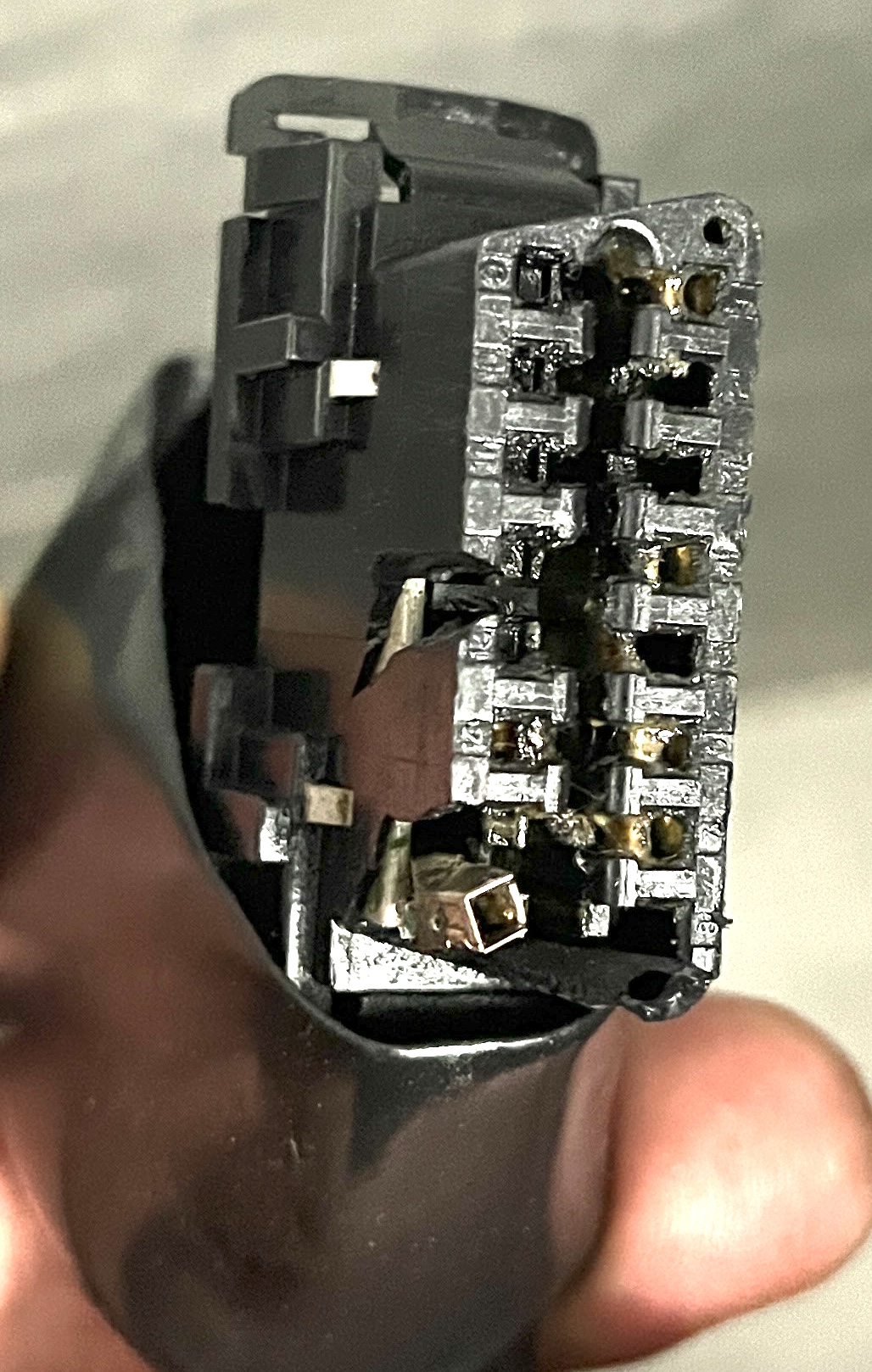

I just bought a Storm (2012) EU version and once I wanted to connect computer / OBD scanner I realised that Diagnostic Connector is failed as per photo. So i want to replace it to new connector but checking service manual I am not sure about current pinout on the existing connector, I suspect that somebody in the past modified it because the connector was also mechanically modified a little.
Could you please check your connector and put here some photo to compare it (cable color and proper pinout).
On the diagram from service manual there is only pin: 4,6,7,8,9,14
On my existing connector there is: 1,4,6,7,14,16

| Thunderbird Storm 2012
|
|
| | | MotorMac | | Jupiter | |  | | Reg. Date | : | 29/08/2010 | | Posts | : | 1,931 | | Location | : | Nor Cal, United States |
|

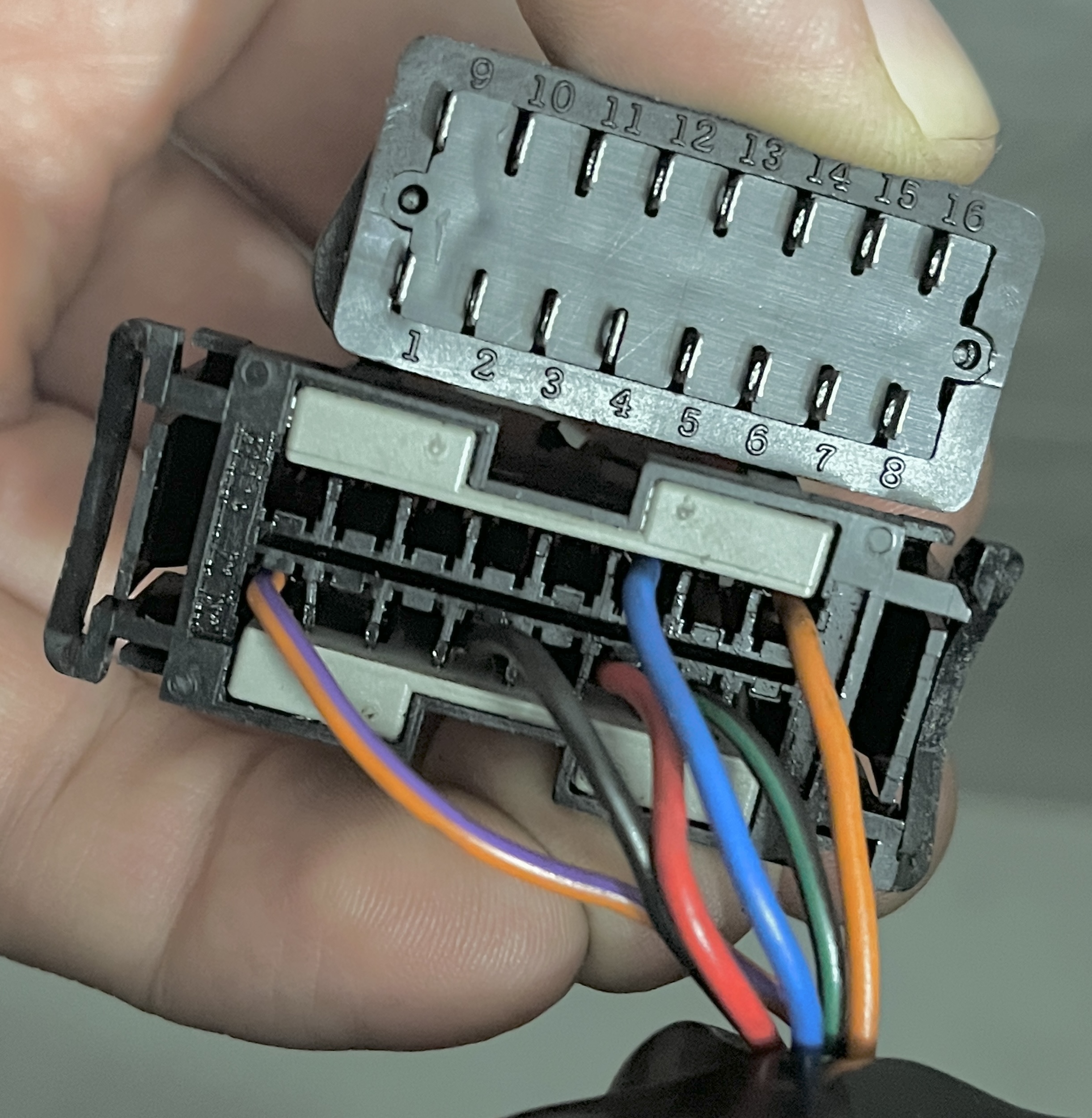

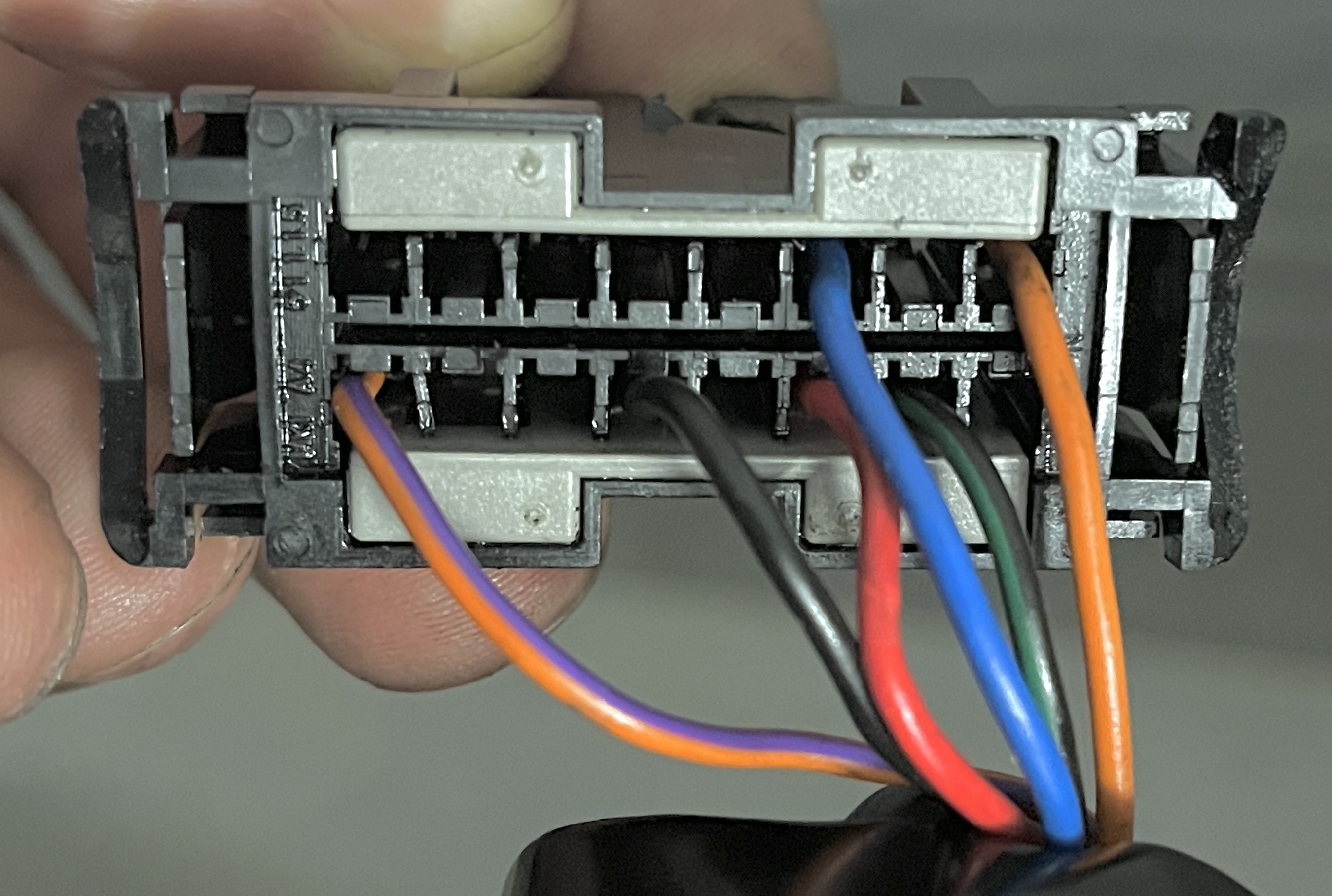

| | Posted : 20 Feb 2024 - 16:31 Post title : Re: Diagnostic connector pinout verification (Re: Malina) | |
| | | Malina | | Set | | | | Reg. Date | : | 11/12/2023 | | Posts | : | 2 | | Location | : | Nowy Sacz, Poland |
|
| | Posted : 25 Feb 2024 - 11:25 Post title : Re: Diagnostic connector pinout verification (Re: MotorMac) | | | Thank you. It helps me so much. I replaced old connector to new one pin2pin already. Seems I have no wires marked as B5 (pin 8) and B23 (pin 9) in the Diagnostic Connector. Do you know what kind of signals are there?
