|  | Topic : cable plug |  |
| | | Gary | | Set |  |  | | Reg. Date | : | 21/07/2010 | | Posts | : | 339 | | Location | : | Herford/used to be london, Germany |
|
| | Posted : 16 Dec 2012 - 11:28 Post title : cable plug | | | Help, How do I get the cable plug apart for the back mudguard
| Big Bohr 1700 Thunderbird and now Storm owner
|
|
| | | mjgt | | Thor | |  | | Reg. Date | : | 16/09/2011 | | Posts | : | 2,201 | | Location | : | North Somerset, United Kingdom |
|
| | Posted : 16 Dec 2012 - 11:49 Post title : Re: cable plug (Re: Gary) | | | Gary
Most of these plugs have a little barbed retainer on them, press the barb/hook down and teh plug should just pull apart. Look for a prong that runs through a hole with a barb or hook on it.
A bit like these.
| Mick . . .  Keep the rubber side down!!
|
|
| | | Gary | | Set | | | | Reg. Date | : | 21/07/2010 | | Posts | : | 339 | | Location | : | Herford/used to be london, Germany |
|

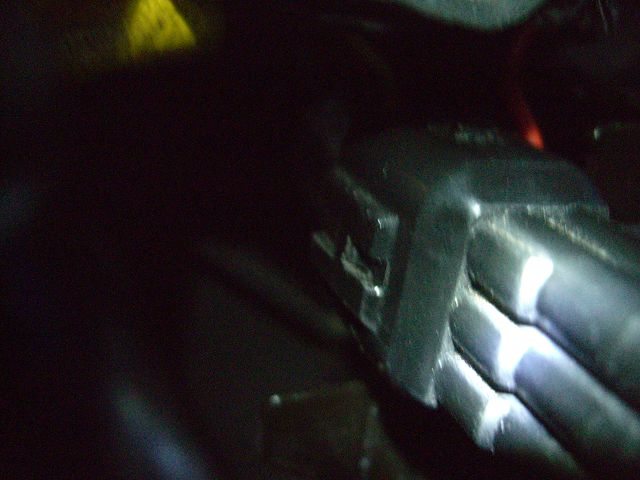

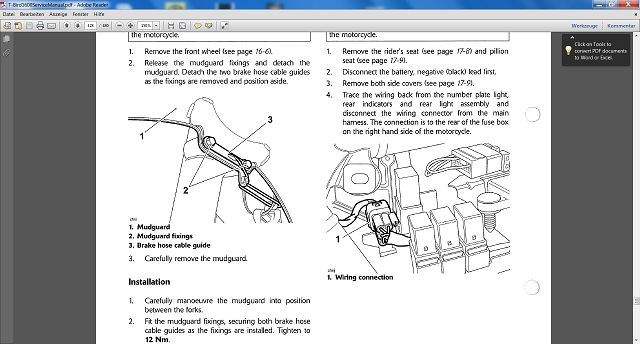

| | Posted : 16 Dec 2012 - 15:53 Post title : Re: cable plug (Re: mjgt) | | | Sorry wrong plug,  it's when you sit on your bike the connection is to the rear of the fuse box on the right hand side of the motorcycle.
But thanks for your help.
| Big Bohr 1700 Thunderbird and now Storm owner
|
|
| | | mjgt | | Thor | | | | Reg. Date | : | 16/09/2011 | | Posts | : | 2,201 | | Location | : | North Somerset, United Kingdom |
|

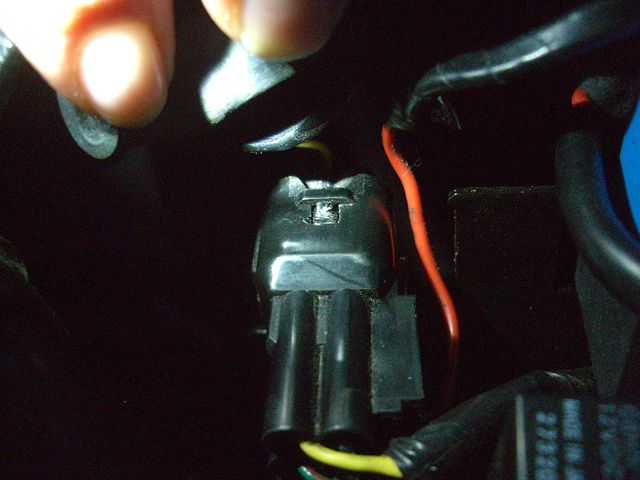

| | Posted : 16 Dec 2012 - 16:46 Post title : Re: cable plug (Re: Gary) | | | No problem but it's still the same, just press the little lock down and pull it apart. It looks like it's on the top in picture 2.
| Mick . . . Keep the rubber side down!!
|
|
| | | Gary | | Set | | | | Reg. Date | : | 21/07/2010 | | Posts | : | 339 | | Location | : | Herford/used to be london, Germany |
|

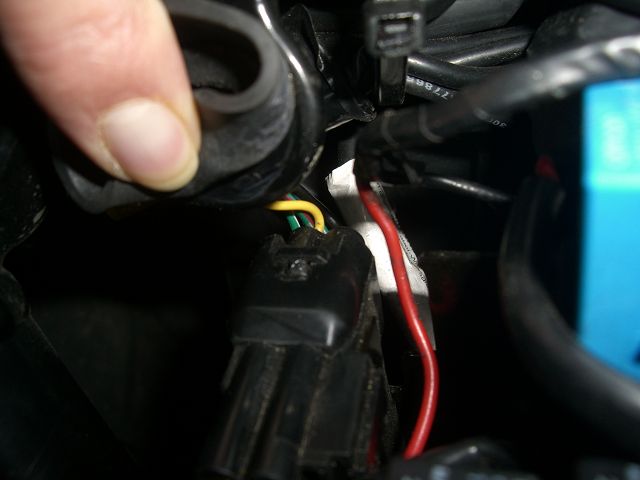

| | Posted : 16 Dec 2012 - 17:02 Post title : Re: cable plug (Re: mjgt) | | | Two of us have tried all afternoon no luck, it's underneath also the lockdown as you call it
| Big Bohr 1700 Thunderbird and now Storm owner
|
|
| | | davetac1 | | Thunderbird | | | Reg. Date | : | 06/09/2010 | | Posts | : | 8,379 | | Location | : | Haverhill, Ma., United States |
|
| | Posted : 16 Dec 2012 - 19:52 Post title : Re: cable plug (Re: Gary) | | | Once ya get it apart,and before ya plug it back together,apply alittle die electric grease on the terminals.That will keep any corrosion from forming,keeping the contacts clean, and make it easier to pull it apart the next time around. Dave!!!
|
|
| | | GerPa | | Jupiter | |  | | Reg. Date | : | 10/12/2011 | | Posts | : | 1,919 | | Location | : | Mackay, Central Queensland, Australia |
|
| | Posted : 16 Dec 2012 - 19:52 Post title : Re: cable plug (Re: Gary) | | | Gary
For memory you should be able to slide the connector off the "Steel Retaining Mounting" and then roll it over as I think the "Clip Lock " is easier to get at that way.
