| | Posted : 20 Mar 2012 - 18:49 Post title : doing some work tomorrow | | | putting my black wheels and oil pressure gauge on tomorrow. cant wait to see how it looks. any tips for doing the wheels? i will post pics when its done
| 2010 tbird 1700 silver (fastest color) BC exhaust, BC airbox removal
|
|
|
|
| CornerBanger | | Jupiter | |  | | Reg. Date | : | 07/07/2010 | | Posts | : | 1,113 | | Location | : | Charleston, SC, United States |
|
| | Posted : 20 Mar 2012 - 19:05 Post title : Re: doing some work tomorrow (Re: FTL40) | | | Yes.
#Front wheel:
Take the calipers loose from the forks because the tire width will not fit between them.
The rest is straight forward
#Back wheel:
Take small line or twine and tie the sprocket to the wheel through several spokes. This keeps the sprocket/cush drive assembly attached to the wheel as you remove it from the bike. It also is very beneficial for installing the wheel as you dont have more than two hands...
Tie the brake assembly to the swing arm, but not tightly. It has to be able to slide in its notch. It prevents it from moving around while you remove/install the wheel. Back to the two hands thing.
Jack bike up just enough to take the weight off of the wheel.
Remove axle.
Roll wheel forward and take the belt off.
Roll wheel back as far as it will go. Begin to jack the bike up until the wheel has clearance from the fender to remove it.
Good luck
| There are those who own and there are those who ride!
2010 Thunderbird
2007 Kawi KX250F
2010 Kawi KX85 (My boy's ride)
|
|
|
|
| mat1600 | | Thunderbird | |  | | Reg. Date | : | 06/03/2010 | | Posts | : | 8,596 | | Location | : | Bridlington, Democratic Independant State of Yorkshire, United Kingdom |
|
| | Posted : 20 Mar 2012 - 20:28 Post title : Re: doing some work tomorrow (Re: CornerBanger) | | | Same as what CB said. Front wheel - just take one caliper off, wheel goes in ok.
Back wheel, as CB said but I found it easier to roll the wheel in and slide the b/caliper on to the disc and get someone to stand on the rear b/pedal or zip tie the pedal down (if you have no mates ) then align the caliper stay with the slot.
Be very careful NOT to bend the ABS pulse ring. A little knock can put that light on. If your dealer has to sort it, he'll fit a new one £180.00 (= a lot of beer)
When you slide the wheel in, find something that aligns the wheel from the right hand side and draw it out as you tap the spindle in.
Tighten the main nut so your wheel doesn't move easy then start to adjust your wheel and belt. If your back wheel is still in the air you can spin the wheel while adjusting and see the belt move to and fro across the pulley - when you have it centered and your belt is ok then tighten all up. 110nm for the main nut.
| My first natural instinct is to breathe. My second is to evade tax's.
|
|
|
|
| FTL40 | | Jupiter | | | | Reg. Date | : | 13/10/2009 | | Posts | : | 1,122 | | Location | : | massachusetts, United States |
|
| | Posted : 20 Mar 2012 - 23:51 Post title : Re: doing some work tomorrow (Re: mat1600) | | | thanks guys
| 2010 tbird 1700 silver (fastest color) BC exhaust, BC airbox removal
|
|
|
|
| FTL40 | | Jupiter | | | | Reg. Date | : | 13/10/2009 | | Posts | : | 1,122 | | Location | : | massachusetts, United States |
|
| | Posted : 21 Mar 2012 - 20:20 Post title : Re: doing some work tomorrow (Re: FTL40) | | |
| 2010 tbird 1700 silver (fastest color) BC exhaust, BC airbox removal
|
|
|
|
| Steve | | Set | |  | | Reg. Date | : | 24/03/2011 | | Posts | : | 480 | | Location | : | Chesham, United Kingdom |
|

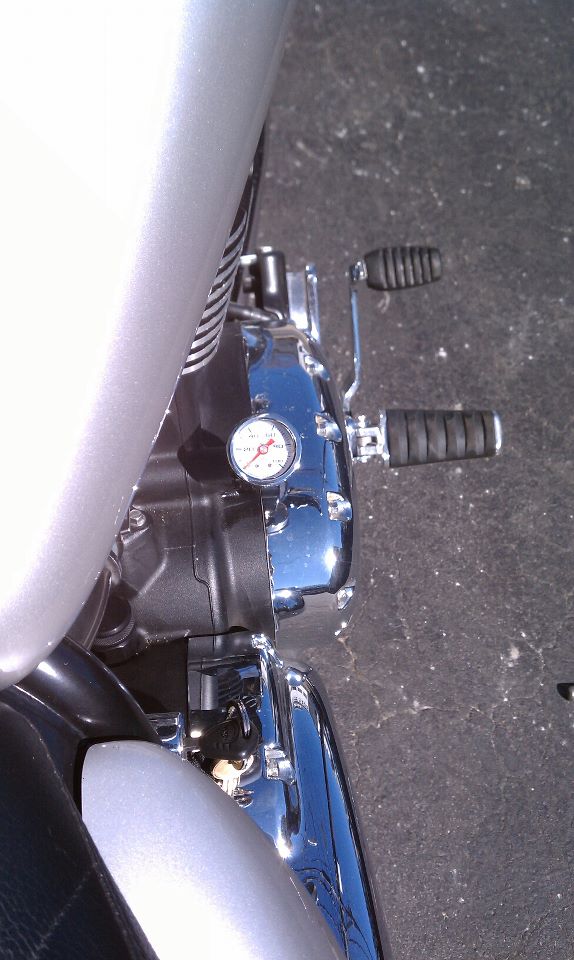

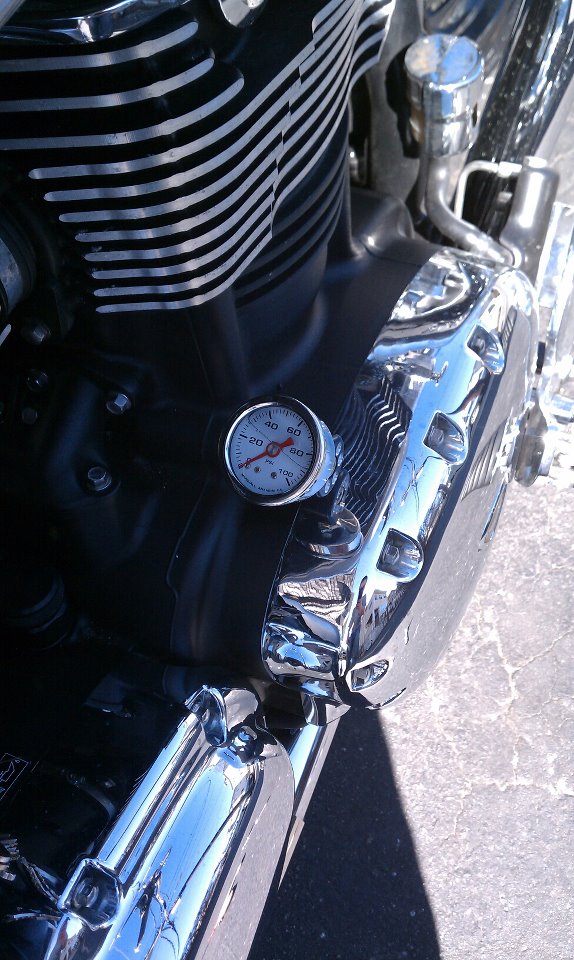

| | Posted : 21 Mar 2012 - 21:11 Post title : Re: doing some work tomorrow (Re: FTL40) | | | Good job. Like the oil pressure gauge looks good.
Everybody has their own tastes and if black wheels does it for you
Probably just an old coot stuck in my ways but I think I'll keep my nice shiny wheels.
|
|
|
|
| FTL40 | | Jupiter | | | | Reg. Date | : | 13/10/2009 | | Posts | : | 1,122 | | Location | : | massachusetts, United States |
|
| | Posted : 21 Mar 2012 - 21:42 Post title : Re: doing some work tomorrow (Re: Steve) | | | my father has a R3, he is big into chrome and shiny also. i like the more subtle muscle car look, also the gauge reads about 16psi idle
| 2010 tbird 1700 silver (fastest color) BC exhaust, BC airbox removal
| | Post edited by FTL40 on 21 Mar 2012 - 21:42 |
|
|
|
| TBRider | | Chaac | |  | | Reg. Date | : | 21/10/2011 | | Posts | : | 834 | | Location | : | Foothills, The Mountains, United States |
|
| | Posted : 21 Mar 2012 - 21:44 Post title : Re: doing some work tomorrow (Re: FTL40) | | | Looks Great. Hey, that gauge looks familiar.
|
|
|
|
|
| Noladuck | | Set | |  | | Reg. Date | : | 05/06/2011 | | Posts | : | 260 | | Location | : | Portland, Oregon, United States |
|

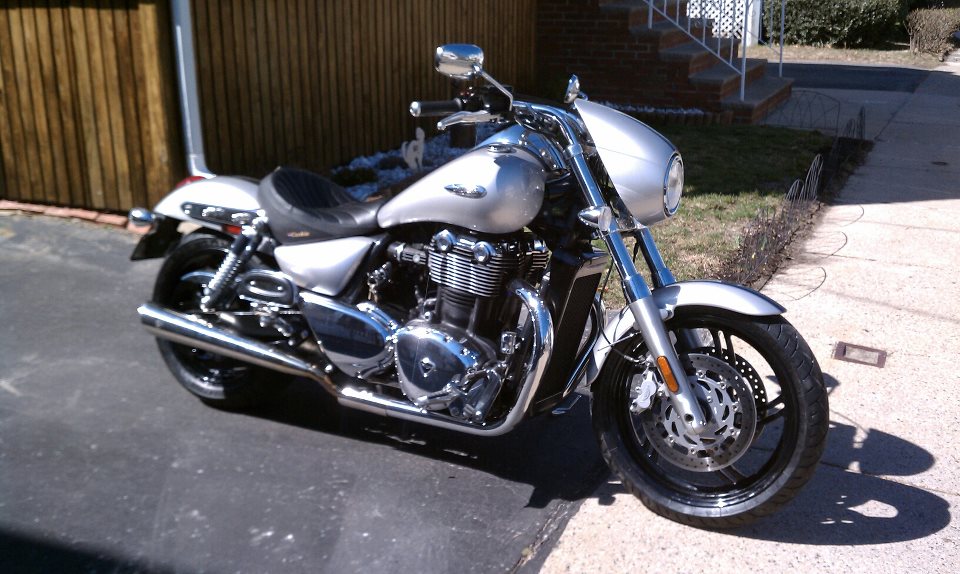

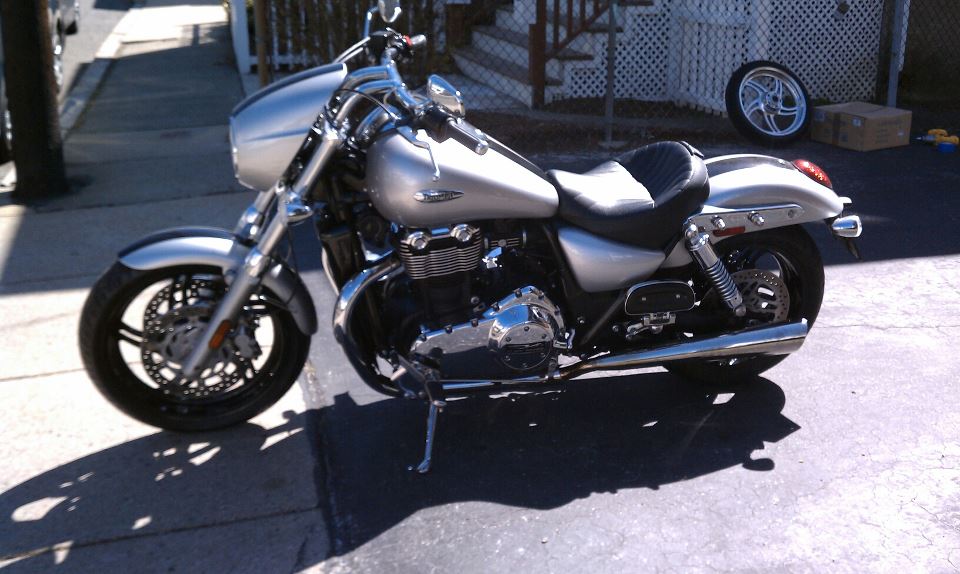

| | Posted : 22 Mar 2012 - 02:30 Post title : Re: doing some work tomorrow (Re: FTL40) | | | The black wheels provide a nice contrast to the silver front fender. I don't normally like black wheels on bikes or cars, but I think this looks pretty good.
|
|
|
|
| CornerBanger | | Jupiter | | | | Reg. Date | : | 07/07/2010 | | Posts | : | 1,113 | | Location | : | Charleston, SC, United States |
|
| | Posted : 25 Mar 2012 - 02:04 Post title : Re: doing some work tomorrow (Re: Noladuck) | | | Nice wheels. How did the remove reinstall go?
| There are those who own and there are those who ride!
2010 Thunderbird
2007 Kawi KX250F
2010 Kawi KX85 (My boy's ride)
|
|
|
|
| FTL40 | | Jupiter | | | | Reg. Date | : | 13/10/2009 | | Posts | : | 1,122 | | Location | : | massachusetts, United States |
|
| | Posted : 25 Mar 2012 - 02:18 Post title : Re: doing some work tomorrow (Re: CornerBanger) | | | actually a lot better than i thought. the front could not have been easier, the rear actually went together easier than it came apart. only thing was aligning the belt and checking tension. i think i got it pretty good, smooth and no noises.
| 2010 tbird 1700 silver (fastest color) BC exhaust, BC airbox removal
|
|
|
|
| RedBird2010 | | Chaac | |  | | Reg. Date | : | 11/10/2010 | | Posts | : | 666 | | Location | : | Spokane Valley, Washington, United States |
|
| | Posted : 25 Mar 2012 - 03:00 Post title : Re: doing some work tomorrow (Re: FTL40) | | | Your bike looks really good with the black wheels, gauge looks good too
| Rick
2010 Thunderbird SE 1600
"Harley-Davidson; the worlds' most efficient method of turning gasoline into noise without the harmful side effect of horsepower."
"The wilderness holds answers to questions man has not yet learned to ask"
|
|
|
|
| CornerBanger | | Jupiter | | | | Reg. Date | : | 07/07/2010 | | Posts | : | 1,113 | | Location | : | Charleston, SC, United States |
|
| | Posted : 26 Mar 2012 - 00:31 Post title : Re: doing some work tomorrow (Re: FTL40) | | |
FTL40 wrote:
actually a lot better than i thought. the front could not have been easier, the rear actually went together easier than it came apart. only thing was aligning the belt and checking tension. i think i got it pretty good, smooth and no noises. |
|
Good. I hope the pointers Mat and I gave made your job a little easier. Again, looks good Mate!
| There are those who own and there are those who ride!
2010 Thunderbird
2007 Kawi KX250F
2010 Kawi KX85 (My boy's ride)
|
|
|
|
| FTL40 | | Jupiter | | | | Reg. Date | : | 13/10/2009 | | Posts | : | 1,122 | | Location | : | massachusetts, United States |
|
| | Posted : 26 Mar 2012 - 02:49 Post title : Re: doing some work tomorrow (Re: CornerBanger) | | | you guys did help thanks
| 2010 tbird 1700 silver (fastest color) BC exhaust, BC airbox removal
|
|
|
|
| magpie | | Jupiter | |  | | Reg. Date | : | 12/02/2011 | | Posts | : | 1,507 | | Location | : | NSW, Australia |
|
| | Posted : 26 Mar 2012 - 07:00 Post title : Re: doing some work tomorrow (Re: CornerBanger) | | |
CornerBanger wrote:
FTL40 wrote:
actually a lot better than i thought. the front could not have been easier, the rear actually went together easier than it came apart. only thing was aligning the belt and checking tension. i think i got it pretty good, smooth and no noises. |
|
Good. I hope the pointers Mat and I gave made your job a little easier. Again, looks good Mate! |
|
CornBanger,
Do I detect a hint of Aussie or Brit in your use of. "mate" !
Or is our use of it rubbing off on you Yanks ?
Magpie
| Magpie - "I dream of a better world.....where chickens can cross the road without having their motives questioned "
|
|
|
|
| Thatch | | Thor | |  | | Reg. Date | : | 24/06/2009 | | Posts | : | 3,655 | | Location | : | Savannah, GA, United States |
|
| | Posted : 26 Mar 2012 - 07:08 Post title : Re: doing some work tomorrow (Re: FTL40) | | |
FTL40 wrote:
|
|
There ya go.... That looks great. The sliver bird, the most under appreciated of the birds and I think one of the best looking. It's got that bulldog look off the showroom and you've done a nice job of accentuating that. The cowl and black wheels really add to it without going overboard.
|
|
|
|
| FTL40 | | Jupiter | | | | Reg. Date | : | 13/10/2009 | | Posts | : | 1,122 | | Location | : | massachusetts, United States |
|
| | Posted : 26 Mar 2012 - 18:33 Post title : Re: doing some work tomorrow (Re: Thatch) | | | thanks :)
| 2010 tbird 1700 silver (fastest color) BC exhaust, BC airbox removal
|
|
|
|
| CornerBanger | | Jupiter | | | | Reg. Date | : | 07/07/2010 | | Posts | : | 1,113 | | Location | : | Charleston, SC, United States |
|
| | Posted : 26 Mar 2012 - 23:57 Post title : Re: doing some work tomorrow (Re: magpie) | | |
magpie wrote:
CornerBanger wrote:
FTL40 wrote:
actually a lot better than i thought. the front could not have been easier, the rear actually went together easier than it came apart. only thing was aligning the belt and checking tension. i think i got it pretty good, smooth and no noises. |
|
Good. I hope the pointers Mat and I gave made your job a little easier. Again, looks good Mate! |
|
CornBanger,
Do I detect a hint of Aussie or Brit in your use of. "mate" !
Or is our use of it rubbing off on you Yanks ?
Magpie
|
|
So, I have a Brit and an Aussie that both live a few doors down. That combined with you fellas, some of it has rubbed off I guess. The veggimite (sp?) is some interesting stuff... Not bad on white bread tho.
As for me, I am Scottish by heritage, Gordon clan. The Brits threw you guys out and built a wall (with the Romans help) to keep us away because we dont like to wear underwear... We have more in common than we like to think. I like your chicks better!!
